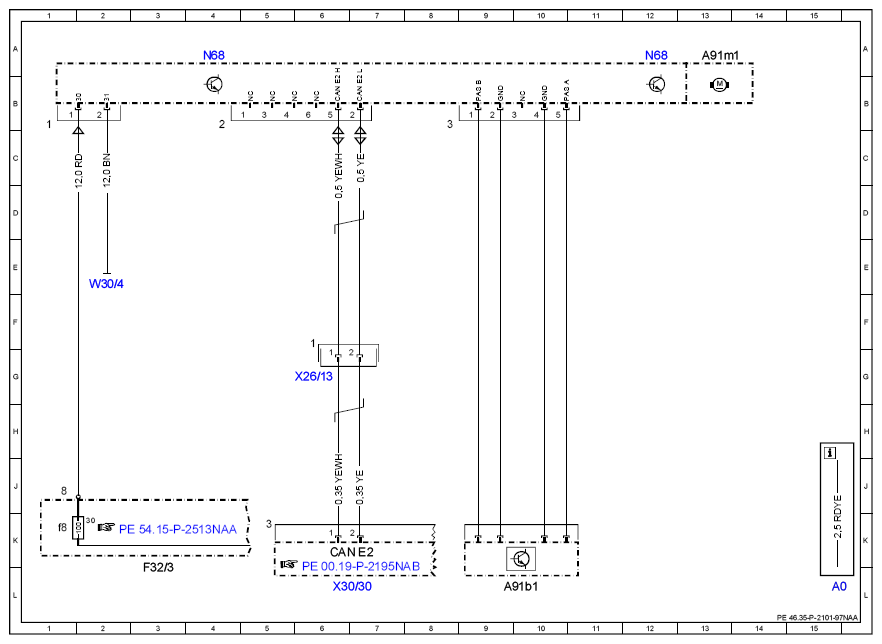

Wiring Diagram For Electric Power Steering Control Unit - PE46.35-P-2101-97NAA

MODEL 166 up to model year 2016 Control unit N68

Code:	Designation:	Position:
A0	Color code key	15L
A91b1	Electric power steering torque sensor	9L
A91m1	Electric power steering actuator motor	13A
CAN E2	Chassis CAN 2	6K
F32/3	Engine compartment prefuse box	3L
F32/3f8	Fuse 8	1K
N68	Electrical power steering control unit	4A
N68	Electrical power steering control unit	12A
W30/4	Power steering pump ground point	2E
X26/13	Electric steering electrical connector	6G
X30/30	Vehicle floor chassis CAN E2 potential distributor electrical connector	6L
