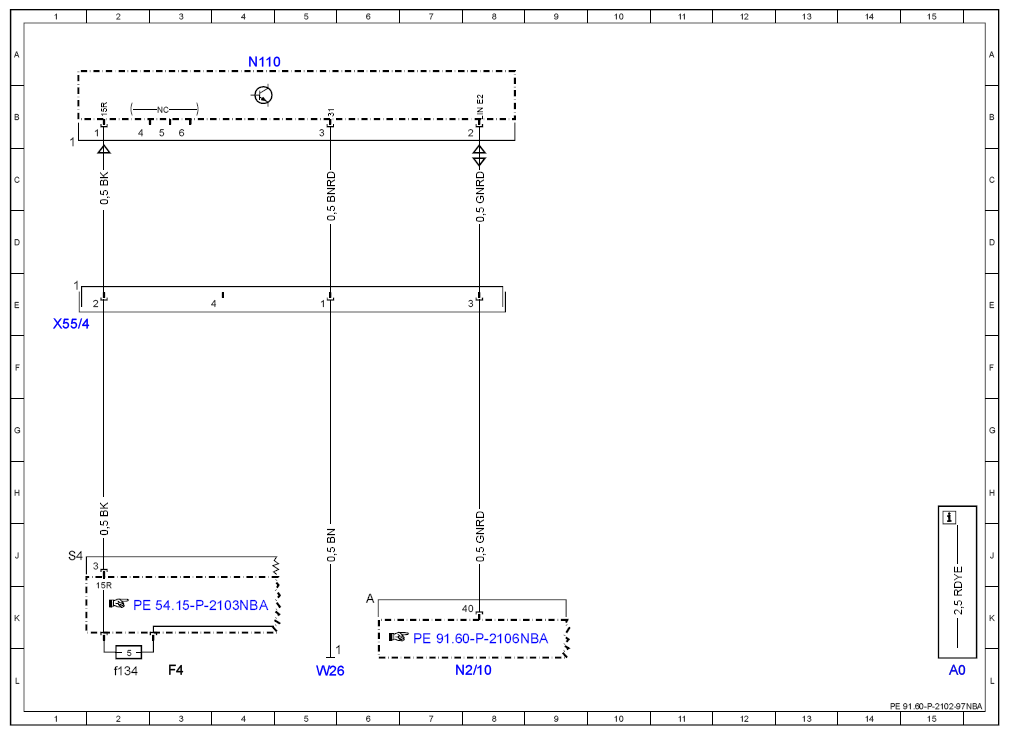

Wiring Diagram For Weight Sensing System (WSS) Control Unit - PE91.60-P-2102-97NBA
MODEL 166 as of model year 2016 with CODE U10 (Automatic seat occupancy recognition and child seat recognition) Control unit N110
MODEL 292 with CODE U10 (Automatic seat occupancy recognition and child seat recognition) Control unit N110
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| F4 | Rear fuse box | 3L |
| F4f134 | Fuse 134 | 2L |
| N110 | Weight Sensing System (WSS) control unit | 4A |
| N2/10 | Supplemental restraint system control unit | 8L |
| W26 | SRS control unit ground point | 5L |
| X55/4 | Front passenger seat connector block | 1E |
