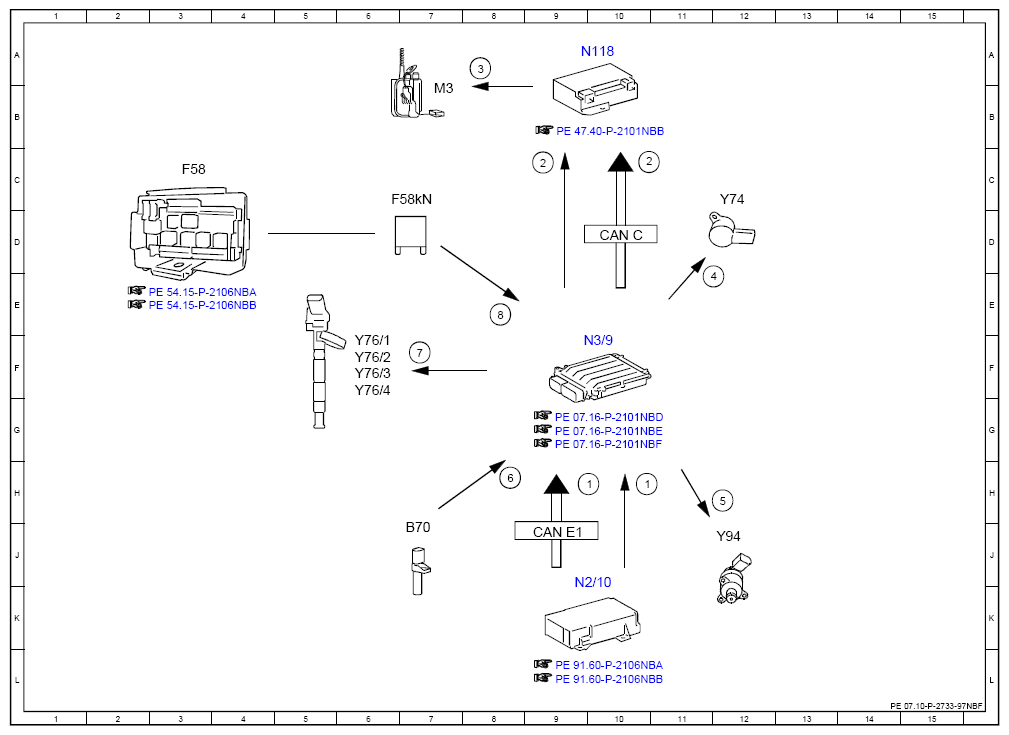

Electrical Function Schematic For Safety Fuel Shutoff - PE07.10-P-2733-97NBF
ENGINE 651.9 in MODEL 166 as of model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 9H |
| 1 | Crash, signal | 10H |
| 2 | Fuel pump, request OFF | 10C |
| 2 | Fuel pump, request OFF | 9C |
| 3 | Fuel pump, actuation | 8A |
| 4 | Pressure regulator valve, actuation | 11E |
| 5 | Quantity control valve, actuation | 12H |
| 6 | Engine speed, signal | 8H |
| 7 | Fuel injectors, actuation | 7F |
| 8 | Circuit 87, status | 8E |
| B70 | Crankshaft Hall sensor | 7J |
| CAN C | Drive train CAN | 10D |
| CAN E1 | Chassis CAN 1 | 9J |
| F58 | Engine compartment fuse and relay module | 3C |
| F58kN | Circuit 87M relay | 7C |
| M3 | Fuel pump (FP) | 7B |
| N118 | Fuel pump control unit | 10A |
| N2/10 | Supplemental restraint system control unit | 9K |
| N3/9 | CDI control unit | 10F |
| Y74 | Pressure regulator valve | 12C |
| Y76/1 | Cylinder 1 fuel injector | 6F |
| Y76/2 | Cylinder 2 fuel injector | 6F |
| Y76/3 | Cylinder 3 fuel injector | 6F |
| Y76/4 | Cylinder 4 fuel injector | 6F |
| Y94 | Quantity control valve | 12J |
