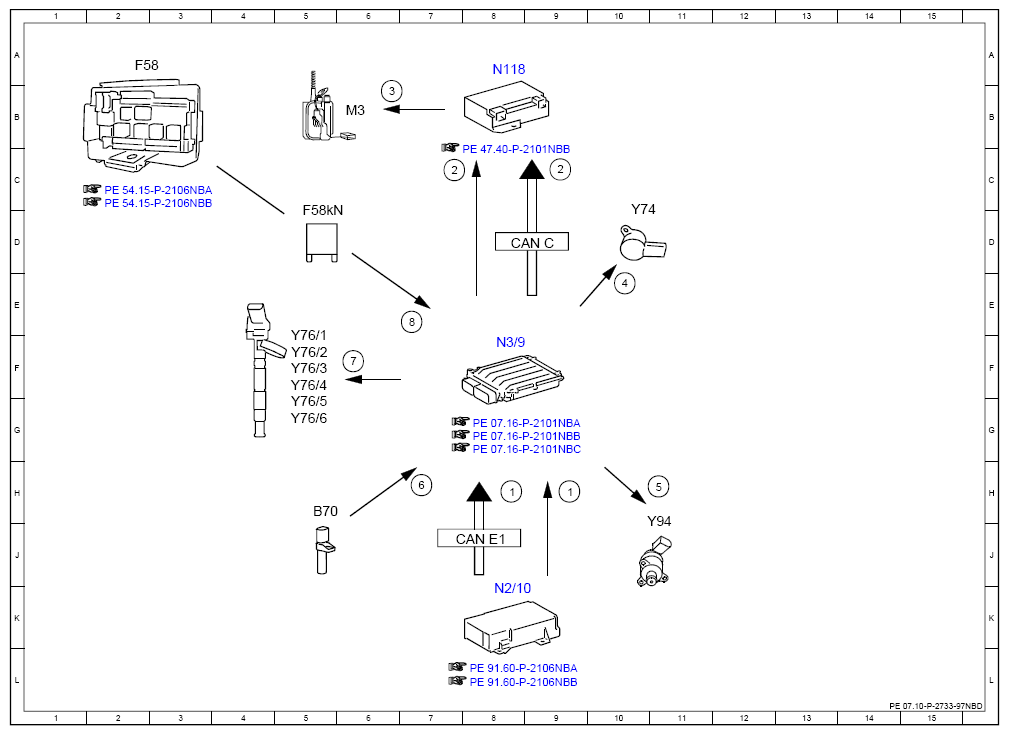

Electrical Function Schematic For Safety Fuel Shutoff - PE07.10-P-2733-97NBD
ENGINE 642.8 in MODEL 166 as of model year 2016
ENGINE 642.8 in MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 8H |
| 1 | Crash, signal | 9H |
| 2 | Fuel pump, request OFF | 9C |
| 2 | Fuel pump, request OFF | 7C |
| 3 | Fuel pump, actuation | 6B |
| 4 | Pressure regulator valve, actuation | 10E |
| 5 | Quantity control valve, actuation | 11H |
| 6 | Engine speed, signal | 7H |
| 7 | Fuel injectors, actuation | 6F |
| 8 | Circuit 87, status | 7E |
| B70 | Crankshaft Hall sensor | 5H |
| CAN C | Drive train CAN | 8D |
| CAN E1 | Chassis CAN 1 | 8J |
| F58 | Engine compartment fuse and relay module | 2A |
| F58kN | Circuit 87M relay | 5D |
| M3 | Fuel pump (FP) | 6B |
| N118 | Fuel pump control unit | 8A |
| N2/10 | Supplemental restraint system control unit | 8K |
| N3/9 | CDI control unit | 8F |
| Y74 | Pressure regulator valve | 10D |
| Y76/1 | Cylinder 1 fuel injector | 5F |
| Y76/2 | Cylinder 2 fuel injector | 5F |
| Y76/3 | Cylinder 3 fuel injector | 5F |
| Y76/4 | Cylinder 4 fuel injector | 5F |
| Y76/5 | Cylinder 5 fuel injector | 5G |
| Y76/6 | Cylinder 6 fuel injector | 5G |
| Y94 | Quantity control valve | 10J |
