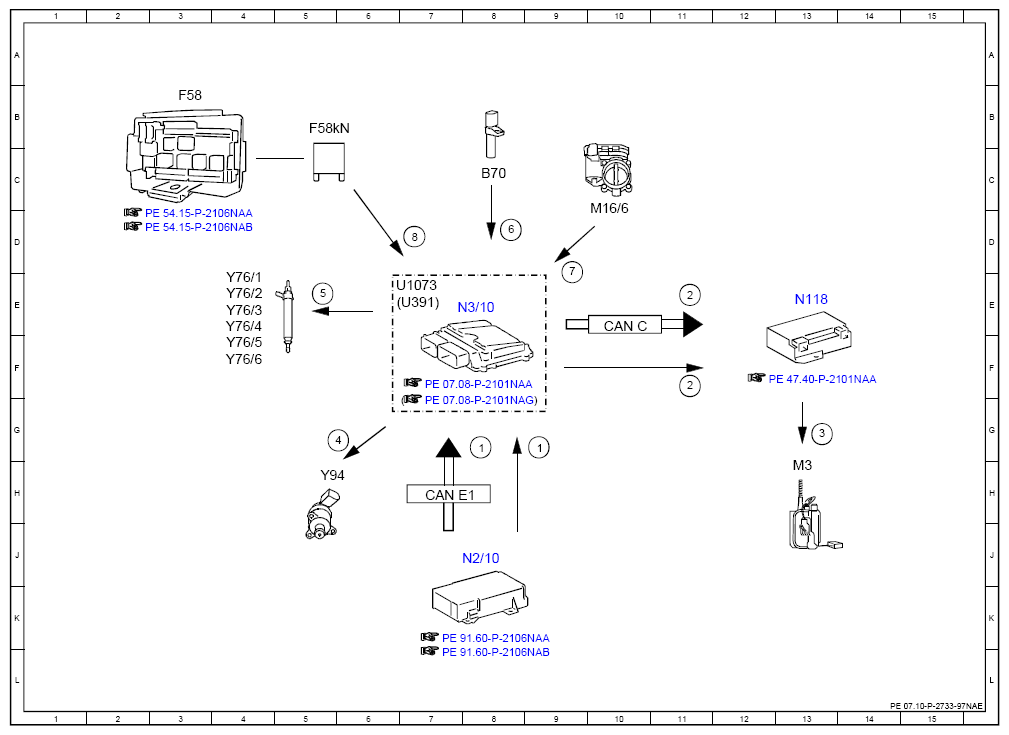

Electrical Function Schematic For Safety Fuel Shutoff - PE07.10-P-2733-97NAE
ENGINE 276 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 8G |
| 1 | Crash, signal | 9G |
| 2 | Fuel pump, request OFF | 11F |
| 2 | Fuel pump, request OFF | 11E |
| 3 | Fuel pump, actuation OFF | 13G |
| 4 | Quantity control valve, actuation | 5G |
| 5 | Fuel injectors, actuation | 5E |
| 6 | Engine speed, signal | 8D |
| 7 | Throttle valve actuator, signal | 9E |
| 8 | Circuit 87, status | 7D |
| B70 | Crankshaft Hall sensor | 8C |
| CAN C | Drive train CAN | 10E |
| CAN E1 | Chassis CAN 1 | 7H |
| F58 | Engine compartment fuse and relay module | 3B |
| F58kN | Circuit 87M relay | 5B |
| M16/6 | Throttle valve actuator | 10D |
| M3 | Fuel pump (FP) | 13H |
| N118 | Fuel pump control unit | 13E |
| N2/10 | Supplemental restraint system control unit | 8J |
| N3/10 | ME-SFI [ME] control unit | 8E |
| U1073 | Valid for gasoline engine 276.9 | 6E |
| U391 | Valid for gasoline engine 276.8 | 6E |
| Y76/1 | Cylinder 1 fuel injector | 4E |
| Y76/2 | Cylinder 2 fuel injector | 4E |
| Y76/3 | Cylinder 3 fuel injector | 4E |
| Y76/4 | Cylinder 4 fuel injector | 4E |
| Y76/5 | Cylinder 5 fuel injector | 4F |
| Y76/6 | Cylinder 6 fuel injector | 4F |
| Y94 | Quantity control valve | 5H |
