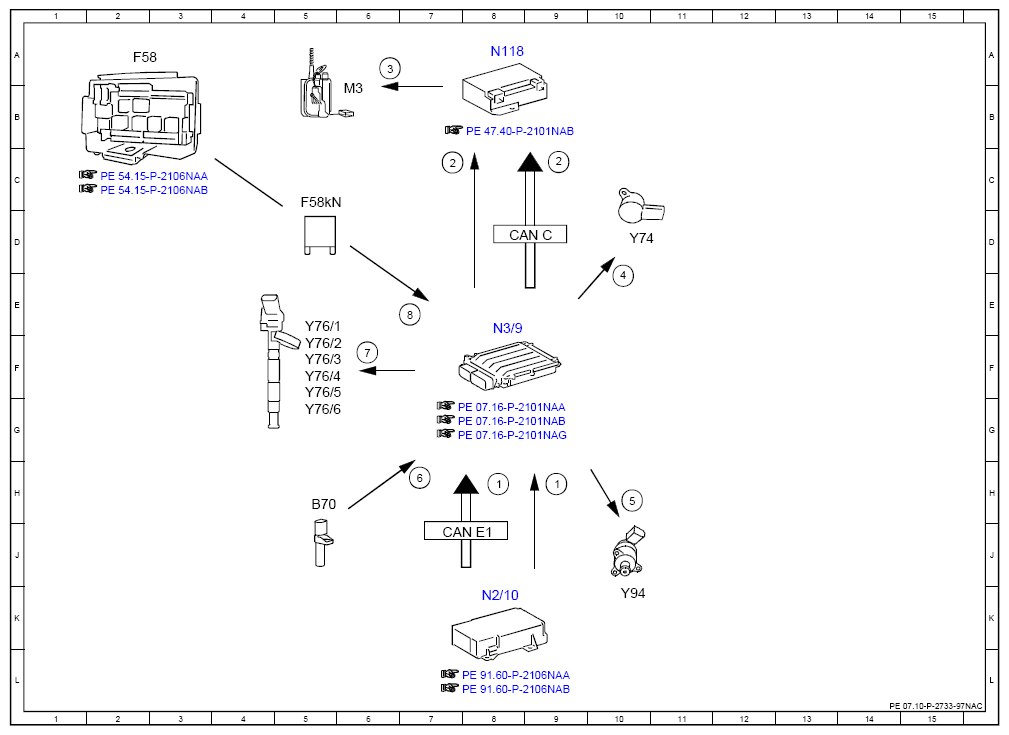

Electrical Function Schematic For Safety Fuel Shutoff - PE07.10-P-2733-97NAC
ENGINE 642.8 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 8H |
| 1 | Crash, signal | 9H |
| 2 | Fuel pump, request OFF | 9C |
| 2 | Fuel pump, request OFF | 7C |
| 3 | Fuel pump, actuation | 6A |
| 4 | Pressure regulator valve, actuation | 10E |
| 5 | Quantity control valve, actuation | 10H |
| 6 | Engine speed, signal | 7H |
| 7 | Fuel injectors, actuation | 6F |
| 8 | Circuit 87, status | 7E |
| B70 | Crankshaft Hall sensor | 5H |
| CAN C | Drive train CAN | 8D |
| CAN E1 | Chassis CAN 1 | 7J |
| F58 Engine | compartment fuse and relay module | 2A |
| F58kN Circuit | 87M relay | 5C |
| M3 Fuel | pump (FP) | 6B |
| N118 Fuel | pump control unit | 8A |
| N2/10 Supplemental | restraint system control unit | 8K |
| N3/9 CDI | control unit | 8E |
| Y74 Pressure | regulator valve | 10D |
| Y76/1 Cylinder | 1 fuel injector | 5E |
| Y76/2 Cylinder | 2 fuel injector | 5F |
| Y76/3 Cylinder | 3 fuel injector | 5F |
| Y76/4 Cylinder | 4 fuel injector | 5F |
| Y76/5 Cylinder | 5 fuel injector | 5F |
| Y76/6 Cylinder | 6 fuel injector | 5G |
| Y94 Quantity | control valve | 10K |
