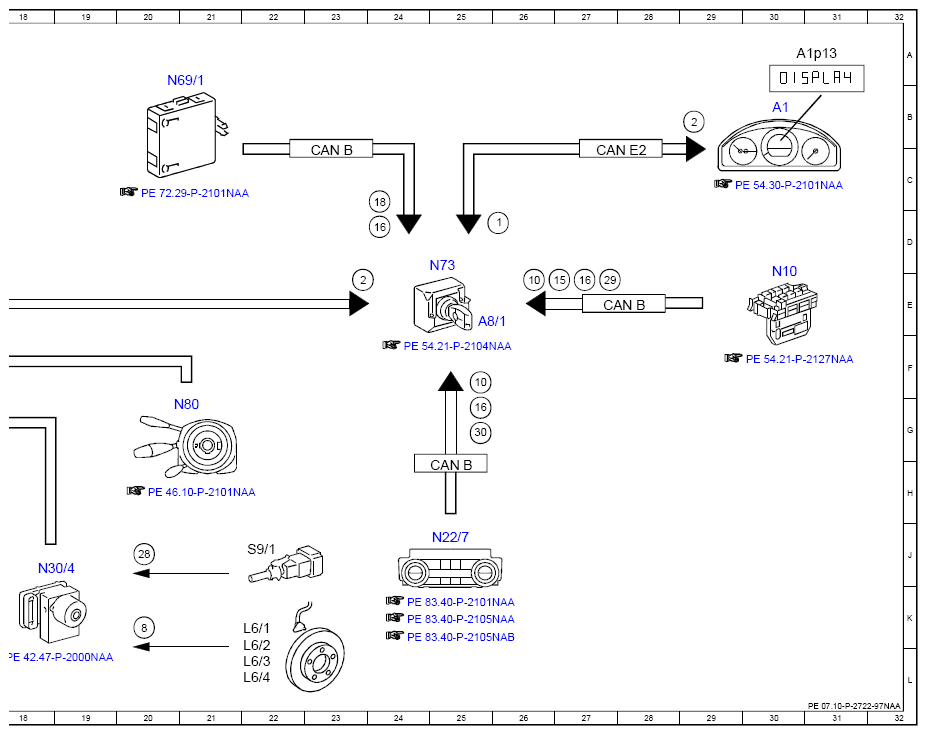

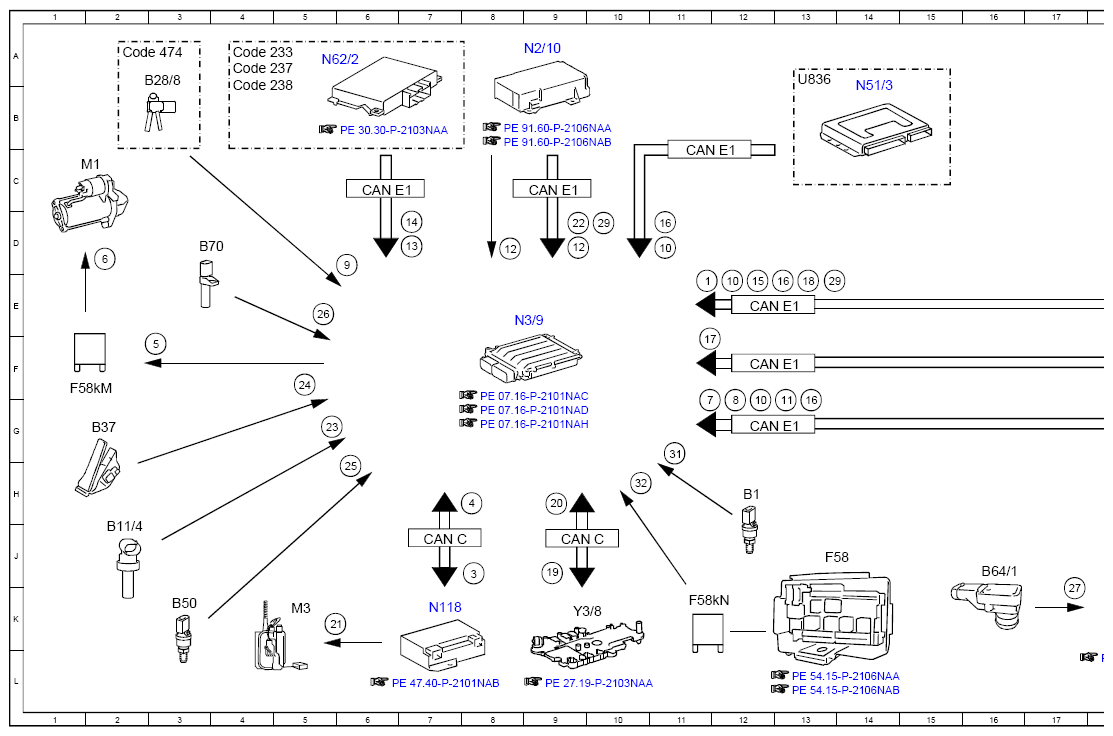

Electrical Function Schematic For Engine Timing Start Stop - PE07.10-P-2722-97NAA
ENGINE 651.9 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 11E |
| 1 | Vehicle speed, signal | 26D |
| 10 | Engine start, request | 12G |
| 10 | Engine start, request | 11D |
| 10 | Engine start, request | 12E |
| 10 | Engine start, request | 25F |
| 10 | Engine start, request | 26E |
| 11 | Engine stop enable, status | 13G |
| 12 | Crash, signal | 8D |
| 12 | Crash, signal | 9D |
| 13 | Engine torque, increase request | 7D |
| 14 | Engine torque, reduce request | 7D |
| 15 | ECO start/stop function button, status | 12E |
| 15 | ECO start/stop function button, status | 27E |
| 16 | Engine stop prohibited, request | 13G |
| 16 | Engine stop prohibited, request | 11D |
| 16 | Engine stop prohibited, request | 13E |
| 16 | Engine stop prohibited, request | 25G |
| 16 | Engine stop prohibited, request | 27E |
| 16 | Engine stop prohibited, request | 24D |
| 17 | Steering wheel angle sensor, signal | 11F |
| 18 | Door rotary tumbler switch, status | 13E |
| 18 | Door rotary tumbler switch, status | 24C |
| 19 | Gear range, request | 9J |
| 2 | Instrument cluster, message | 23E |
| 2 | Instrument cluster, message | 29B |
| 20 | Gear range, status | 9H |
| 21 | Fuel pump, actuation | 5K |
| 22 | Seat belt buckle switch, status | 9D |
| 23 | Coolant temperature sensor, signal | 5G |
| 24 | Accelerator pedal sensor, signal | 5F |
| 25 | Fuel temperature, signal | 6H |
| 26 | Engine speed, signal | 5E |
| 27 | Brake vacuum sensor, signal | 17K |
| 28 | Brake light switch, signal | 20J |
| 29 | Engine hood contact switch, status | 10D |
| 29 | Engine hood contact switch, status | 13E |
| 29 | Engine hood contact switch, status | 27E |
| 3 | Fuel pump, specified pressure request | 8J |
| 30 | Air conditioning, status | 25G |
| 31 | Oil temperature sensor, signal | 11G |
| 32 | Circuit 87, status | 10H |
| 4 | Fuel pressure, status | 8H |
| 5 | Starter circuit 50 relay, actuation | 3F |
| 6 | Starter, actuation | 2D |
| 7 | Brake light switch, status | 11G |
| 8 | Wheel speed, signal | 12G |
| 8 | Wheel speed, signal | 20K |
| 9 | Differential pressure sensor (DPF), signal | 6D |
| A1 | Instrument cluster | 30B |
| A1p13 | Multifunction display | 31A |
| A8/1 | Transmitter key | 25E |
| B1 | Engine oil temperature sensor | 12H |
| B11/4 | Coolant temperature sensor | 2J |
| B28/8 | Differential pressure sensor (DPF) | 3A |
| B37 | Accelerator pedal sensor | 2G |
| B50 | Fuel temperature sensor | 3K |
| B64/1 | Brake vacuum sensor | 16J |
| B70 | Crankshaft Hall sensor | 3D |
| CAN B | Interior CAN | 25H |
| CAN B | Interior CAN | 27E |
| CAN B | Interior CAN | 23C |
| CAN C | Drive train CAN | 7J |
| CAN C | Drive train CAN | 9J |
| CAN E1 | Chassis CAN 1 | 12E |
| CAN E1 | Chassis CAN 1 | 9C |
| CAN E1 | Chassis CAN 1 | 12F |
| CAN E1 | Chassis CAN 1 | 12G |
| CAN E1 | Chassis CAN 1 | 6C |
| CAN E1 | Chassis CAN 1 | 11C |
| CAN E2 | Chassis CAN 2 | 27C |
| Code 233 | DISTRONIC PLUS | 4A |
| Code 237 | Active Blind Spot Assist | 4A |
| Code 238 | Active Lane Keeping Assist | 4B |
| Code 474 | Diesel particulate filter | 2A |
| F58 | Engine compartment fuse and relay module | 13J |
| F58kM | Starter circuit 50 relay | 1F |
| F58kN | Circuit 87M relay | 11K |
| L6/1 | Left front axle rpm sensor | 22K |
| L6/2 | Right front axle rpm sensor | 22L |
| L6/3 | Left rear axle rpm sensor | 22L |
| L6/4 | Right rear axle rpm sensor | 22L |
| M1 | Starter | 2C |
| M3 | Fuel pump (FP) | 5K |
| N10 | SAM control unit | 30E |
| N118 | Fuel pump control unit | 7K |
| N2/10 | Supplemental restraint system control unit | 9A |
| N22/7 | Automatic air conditioning control and operating unit | 25J |
| N3/9 | CDI control unit | 8E |
| N30/4 | Electronic Stability Program control unit | 18J |
| N51/3 | AIRMATIC control unit | 14B |
| N62/2 | Video and radar sensor system control unit | 5A |
| N69/1 | Left front door control unit | 20A |
| N73 | Electronic ignition switch control unit | 25D |
| N80 | Steering column module control unit | 21G |
| S9/1 | Stop lamp switch | 22J |
| U836 | Valid for AIRMATIC | 13A |
| Y3/8 | Fully integrated transmission control unit | 9K |
