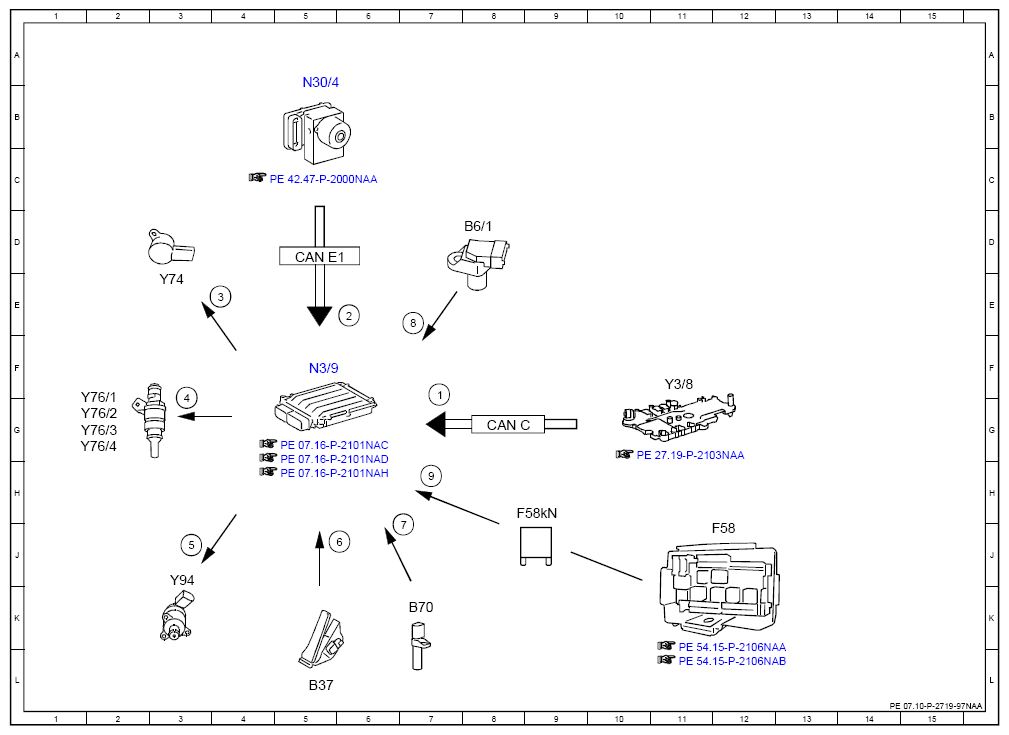

Electrical Function Schematic For Engine Limp-Home Mode - PE07.10-P-2719-97NAA
ENGINE 651.9 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 7G |
| 2 | Service brake, status | 6E |
| 3 | Pressure regulator valve, actuation | 4E |
| 4 | Fuel injectors, actuation | 3G |
| 5 | Quantity control valve, actuation | 3J |
| 6 | Accelerator pedal sensor, signal | 6J |
| 7 | Engine speed, signal | 7J |
| 8 | Camshaft Hall sensor, signal | 7E |
| 9 | Circuit 87, status | 7H |
| B37 | Accelerator pedal sensor | 5L |
| B6/1 | Camshaft Hall sensor | 8D |
| B70 | Crankshaft Hall sensor | 7K |
| CAN C | Drive train CAN | 8G |
| CAN E1 | Chassis CAN 1 | 5D |
| F58 | Engine compartment fuse and relay module | 12J |
| F58kN | Circuit 87M relay | 9H |
| N3/9 | CDI control unit | 5F |
| N30/4 | Electronic Stability Program control unit | 5B |
| Y3/8 | Fully integrated transmission control unit | 11F |
| Y74 | Pressure regulator valve | 3E |
| Y76/1 | Cylinder 1 fuel injector | 1G |
| Y76/2 | Cylinder 2 fuel injector | 1G |
| Y76/3 | Cylinder 3 fuel injector | 1G |
| Y76/4 | Cylinder 4 fuel injector | 1G |
| Y94 | Quantity control valve | 3J |
