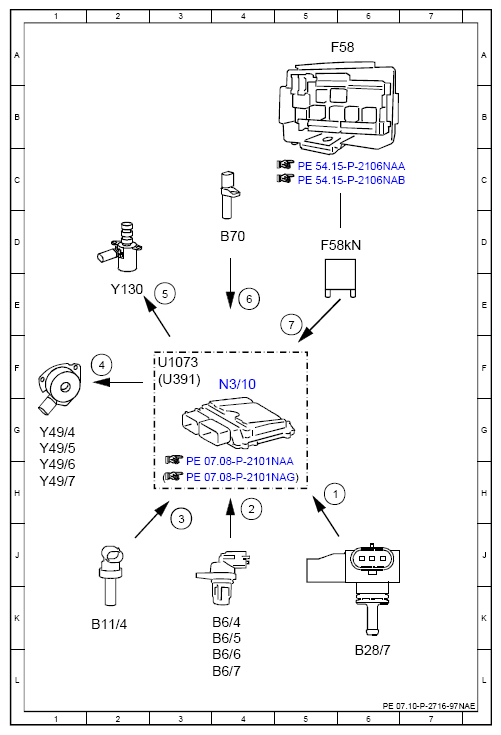

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97NAE
ENGINE 276 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 5H |
| 2 | Camshaft Hall sensor, signal | 4H |
| 3 | Coolant temperature sensor, signal | 3H |
| 4 | Camshaft solenoids, actuation | 2F |
| 5 | Engine oil pump valve, actuation | 3E |
| 6 | Engine speed, signal | 4E |
| 7 | Circuit 87, status | 5E |
| B11/4 | Coolant temperature sensor | 2K |
| B28/7 | Pressure sensor downstream of throttle valve | 6L |
| B6/4 | Left intake camshaft Hall sensor | 4K |
| B6/5 | Right intake camshaft Hall sensor | 4K |
| B6/6 | Left exhaust camshaft Hall sensor | 4L |
| B6/7 | Right exhaust camshaft Hall sensor | 4L |
| B70 | Crankshaft Hall sensor | 4D |
| F58 | Engine compartment fuse and relay module | 6A |
| F58kN | Circuit 87M relay | 5D |
| N3/10 | ME-SFI [ME] control unit | 4F |
| U1073 | Valid for gasoline engine 276.9 | 3F |
| U391 | Valid for gasoline engine 276.8 | 3F |
| Y130 | Engine oil pump valve | 2E |
| Y49/4 | Left intake camshaft solenoid | 1G |
| Y49/5 | Right intake camshaft solenoid | 1G |
| Y49/6 | Left exhaust camshaft solenoid | 1H |
| Y49/7 | Right exhaust camshaft solenoid | 1H |
