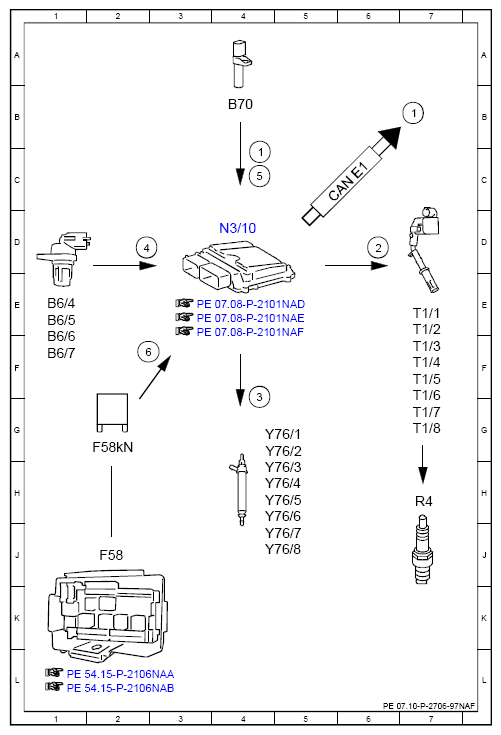

Electrical Function Schematic, Synchronization Of The Injection And Firing Order - PE07.10-P-2706-97NAF
ENGINE 157, 278 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine speed, signal | 7B |
| 1 | Engine speed, signal | 4C |
| 2 | Ignition coils, actuation | 6D |
| 3 | Fuel injectors, actuation | 4G |
| 4 | Camshaft Hall sensor, signal | 2D |
| 5 | Crankshaft Hall sensor, signal | 4C |
| 6 | Circuit 87, status | 2F |
| B6/4 | Left intake camshaft Hall sensor | 1E |
| B6/5 | Right intake camshaft Hall sensor | 1E |
| B6/6 | Left exhaust camshaft Hall sensor | 1F |
| B6/7 | Right exhaust camshaft Hall sensor | 1F |
| B70 | Crankshaft Hall sensor | 4B |
| CAN E1 | Chassis CAN 1 | 6C |
| F58 | Engine compartment fuse and relay module | 2J |
| F58kN | Circuit 87M relay | 2G |
| N3/10 | ME-SFI [ME] control unit | 4D |
| R4 | Spark plugs | 7H |
| T1/1 | Cylinder 1 ignition coil | 7E |
| T1/2 | Cylinder 2 ignition coil | 7E |
| T1/3 | Cylinder 3 ignition coil | 7F |
| T1/4 | Cylinder 4 ignition coil | 7F |
| T1/5 | Cylinder 5 ignition coil | 7F |
| T1/6 | Cylinder 6 ignition coil | 7G |
| T1/7 | Cylinder 7 ignition coil | 7G |
| T1/8 | Cylinder 8 ignition coil | 7G |
| Y76/1 | Cylinder 1 fuel injector | 4G |
| Y76/2 | Cylinder 2 fuel injector | 4G |
| Y76/3 | Cylinder 3 fuel injector | 4H |
| Y76/4 | Cylinder 4 fuel injector | 4H |
| Y76/5 | Cylinder 5 fuel injector | 4H |
| Y76/6 | Cylinder 6 fuel injector | 4H |
| Y76/7 | Cylinder 7 fuel injector | 4J |
| Y76/8 | Cylinder 8 fuel injector | 4J |
