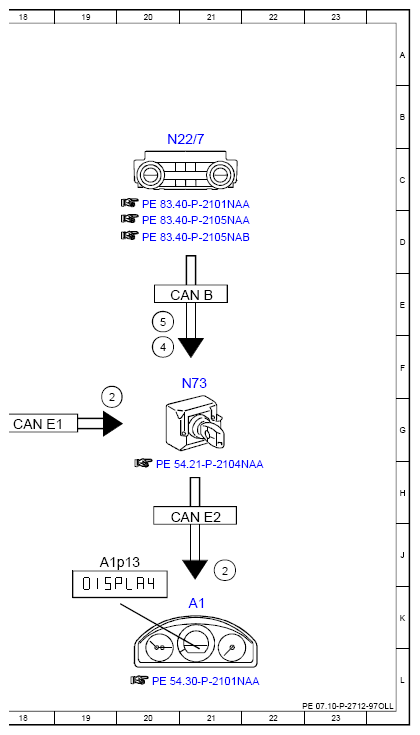

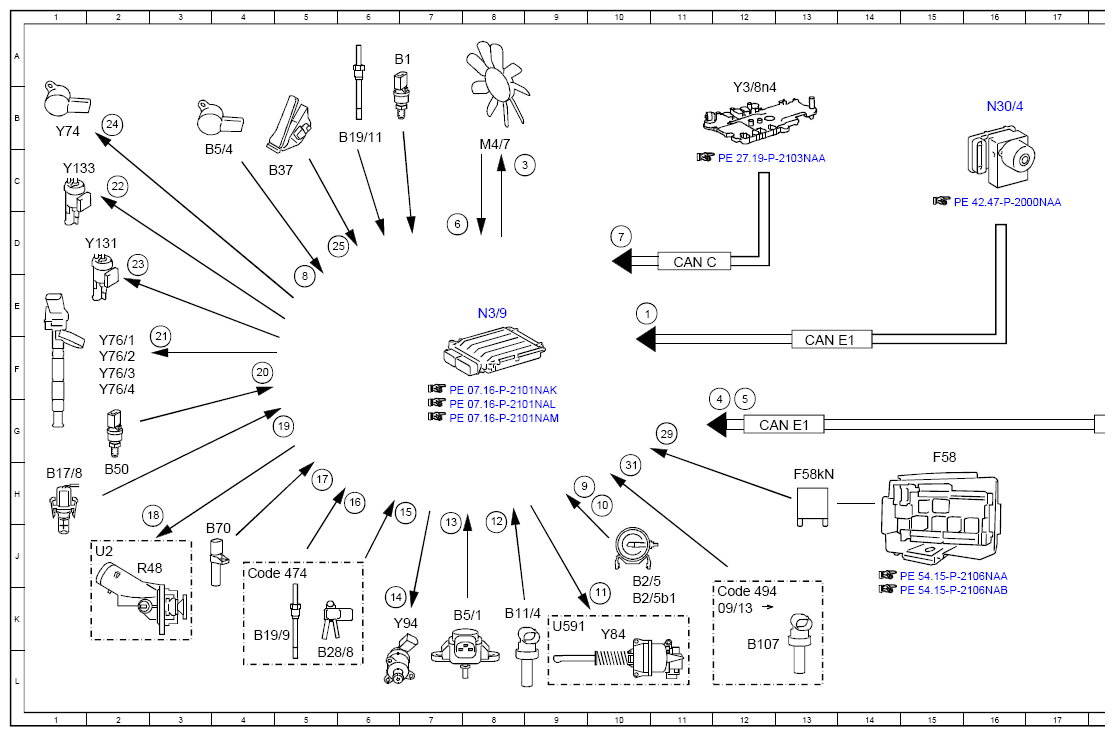

Electrical Function Schematic For Thermal Management - PE07.10-P-2712-97OLL
ENGINE 651.9 in MODEL 166 as of 3/1/13 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 10E |
| 10 | Engine load, signal | 10H |
| 11 | Radiator shutters actuator, actuation | 10K |
| 12 | Coolant temperature sensor, signal | 8J |
| 13 | Boost pressure, signal | 7H |
| 14 | Quantity control valve, actuation | 6K |
| 15 | Differential pressure sensor (DPF), signal | 7H |
| 16 | Temperature sensor upstream of diesel particulate filter, signal | 6H |
| 17 | Engine speed, signal | 5H |
| 18 | Coolant thermostat heating element, actuation | 3H |
| 19 | Charge air temperature sensor, signal | 5G |
| 2 | Instrument cluster, message | 21J |
| 2 | Instrument cluster, message | 19G |
| 20 | Fuel temperature, signal | 4F |
| 21 | Fuel injectors, actuation | 3F |
| 22 | Coolant pump switchover valve, actuation | 2C |
| 23 | Oil spray nozzles shutoff valve, actuation | 2D |
| 24 | Pressure regulator valve, actuation | 2B |
| 25 | Accelerator pedal sensor, signal | 5D |
| 29 | Circuit 87, status | 11G |
| 3 | Fan motor, specified rpm request | 8C |
| 31 | Coolant pump temperature sensor, signal | 10H |
| 4 | Air conditioning, status | 12G |
| 4 | Air conditioning, status | 20F |
| 5 | Outside temperature, signal | 12G |
| 5 | Outside temperature, signal | 20E |
| 6 | Fan motor, status | 7D |
| 7 | Gear range, status | 10D |
| 8 | Boost pressure, signal | 5E |
| 9 | Intake air temperature sensor, signal | 9H |
| A1 | Instrument cluster | 21K |
| A1p13 | Multifunction display | 19J |
| B1 | Engine oil temperature sensor | 6A |
| B107 | Coolant pump temperature sensor | 12K |
| B11/4 | Coolant temperature sensor | 8K |
| B17/8 | Charge air temperature sensor | 1H |
| B19/11 | Temperature sensor upstream of turbocharger | 6B |
| B19/9 | Temperature sensor upstream of diesel particulate filter | 4K |
| B2/5 | Hot film mass air flow sensor | 10J |
| B2/5b1 | Intake air temperature sensor | 10K |
| B28/8 | Differential pressure sensor (DPF) | 5L |
| B37 | Accelerator pedal sensor | 4C |
| B5/1 | Boost pressure sensor | 7K |
| B5/4 | Low-pressure turbocharger boost pressure sensor | 3C |
| B50 | Fuel temperature sensor | 2H |
| B70 | Crankshaft Hall sensor | 3J |
| CAN B | Interior CAN | 21E |
| CAN C | Drive train CAN | 11D |
| CAN E1 | Chassis CAN 1 | 12G |
| CAN E1 | Chassis CAN 1 | 18G |
| CAN E1 | Chassis CAN 1 | 13F |
| CAN E2 | Chassis CAN 2 | 21H |
| Code 474 | Diesel particulate filter | 4J |
| Code 494 | USA version | 12K |
| F58 | Engine compartment fuse and relay module | 15H |
| F58kN | Circuit 87M relay | 13H |
| M4/7 | Fan motor | 8C |
| N22/7 | Automatic air conditioning control and operating unit | 20B |
| N3/9 | CDI control unit | 8E |
| N30/4 | Electronic Stability Program control unit | 16B |
| N73 | Electronic ignition switch control unit | 21F |
| R48 | Coolant thermostat heating element | 2J |
| U2 | Valid for all except USA | 2J |
| U591 | Not valid for trailer hitch | 9K |
| Y131 | Oil spray nozzle shutoff valve | 2D |
| Y133 | Coolant pump switchover valve | 1C |
| Y3/8n4 | Fully integrated transmission control unit | 12B |
| Y74 | Pressure regulator valve | 1B |
| Y76/1 | Cylinder 1 fuel injector | 2F |
| Y76/2 | Cylinder 2 fuel injector | 2F |
| Y76/3 | Cylinder 3 fuel injector | 2F |
| Y76/4 | Cylinder 4 fuel injector | 2F |
| Y84 | Radiator shutters actuator | 10K |
| Y94 | Quantity control valve | 6K |
