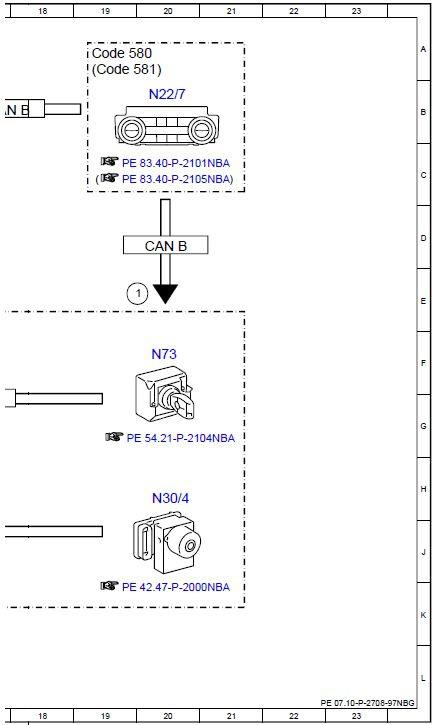

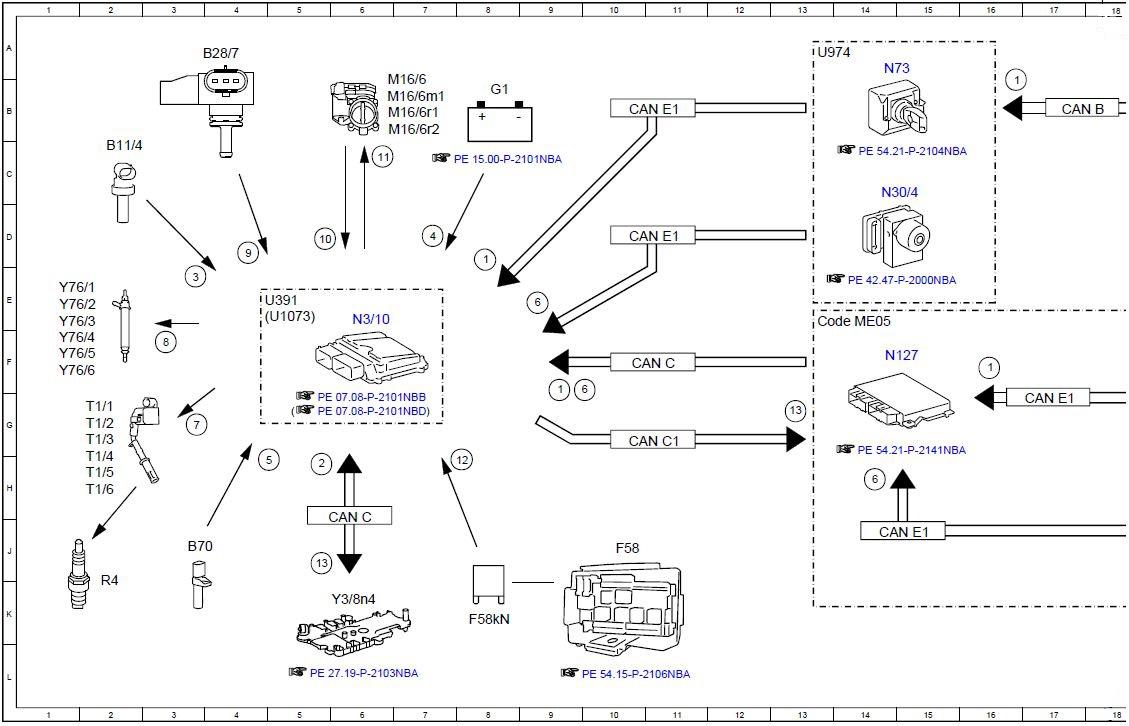

Electrical Function Schematic For RPM Control - PE07.10-P-2708-97NBG
ENGINE 276 in MODEL 166 as of model year 2016
ENGINE 276.8 in MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 16B |
| 1 | Air conditioning, status | 8D |
| 1 | Air conditioning, status | 9F |
| 1 | Air conditioning, status | 16F |
| 1 | Air conditioning, status | 20E |
| 10 | Throttle valve position, signal | 5D |
| 11 | Throttle valve actuator motor, actuation | 6C |
| 12 | Circuit 87, status | 8H |
| 13 | Engine running, signal | 5J |
| 13 | Engine running, signal | 13G |
| 2 | Gear range, status | 5H |
| 3 | Coolant temperature sensor, signal | 3E |
| 4 | Circuit 30, status | 7D |
| 5 | Engine speed, signal | 4H |
| 6 | Wheel speed, signal | 9E |
| 6 | Wheel speed, signal | 10G |
| 6 | Wheel speed, signal | 14H |
| 7 | Ignition coils, actuation | 3G |
| 8 | Fuel injectors, actuation | 3F |
| 9 | Engine load, signal | 4D |
| B11/4 | Coolant temperature sensor | 2C |
| B28/7 | Pressure sensor downstream of throttle valve | 4A |
| B70 | Crankshaft Hall sensor | 3J |
| CAN B | Interior CAN | 17B |
| CAN B | Interior CAN | 20D |
| CAN C | Drive train CAN | 6J |
| CAN C | Drive train CAN | 10F |
| CAN C1 | Engine CAN | 10G |
| CAN E1 | Chassis CAN 1 | 17G |
| CAN E1 | Chassis CAN 1 | 10D |
| CAN E1 | Chassis CAN 1 | 10B |
| CAN E1 | Chassis CAN 1 | 14J |
| Code 580 | Automatic air conditioning | 19A |
| Code 581 | Comfort automatic air conditioning | 19A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 13E |
| F58 | Engine compartment fuse and relay module | 10J |
| F58kN | Circuit 87M relay | 8K |
| G1 | On-board electrical system battery | 8B |
| M16/6 | Throttle valve actuator | 7B |
| M16/6m1 | Actuator motor | 7B |
| M16/6r1 | Actual value potentiometer 1 | 7B |
| M16/6r2 | Actual value potentiometer 2 | 7B |
| N127 | Drivetrain control unit | 14F |
| N22/7 | Automatic air conditioning control and operating unit | 20B |
| N3/10 | ME-SFI [ME] control unit | 6E |
| N30/4 | Electronic Stability Program control unit | 14C |
| N30/4 | Electronic Stability Program control unit | 20H |
| N73 | Electronic ignition switch control unit | 14A |
| N73 | Electronic ignition switch control unit | 20F |
| R4 | Spark plugs | 2K |
| T1/1 | Cylinder 1 ignition coil | 2G |
| T1/2 | Cylinder 2 ignition coil | 2G |
| T1/3 | Cylinder 3 ignition coil | 2G |
| T1/4 | Cylinder 4 ignition coil | 2H |
| T1/5 | Cylinder 5 ignition coil | 2H |
| T1/6 | Cylinder 6 ignition coil | 2H |
| U1073 | Valid for gasoline engine 276.9 | 4E |
| U391 | Valid for gasoline engine 276.8 | 4E |
| U974 | Not valid for hybrid drive | 13A |
| Y3/8n4 | Fully integrated transmission control unit | 6K |
| Y76/1 | Cylinder 1 fuel injector | 1E |
| Y76/2 | Cylinder 2 fuel injector | 1E |
| Y76/3 | Cylinder 3 fuel injector | 1E |
| Y76/4 | Cylinder 4 fuel injector | 1F |
| Y76/5 | Cylinder 5 fuel injector | 1F |
| Y76/6 | Cylinder 6 fuel injector | 1F |
