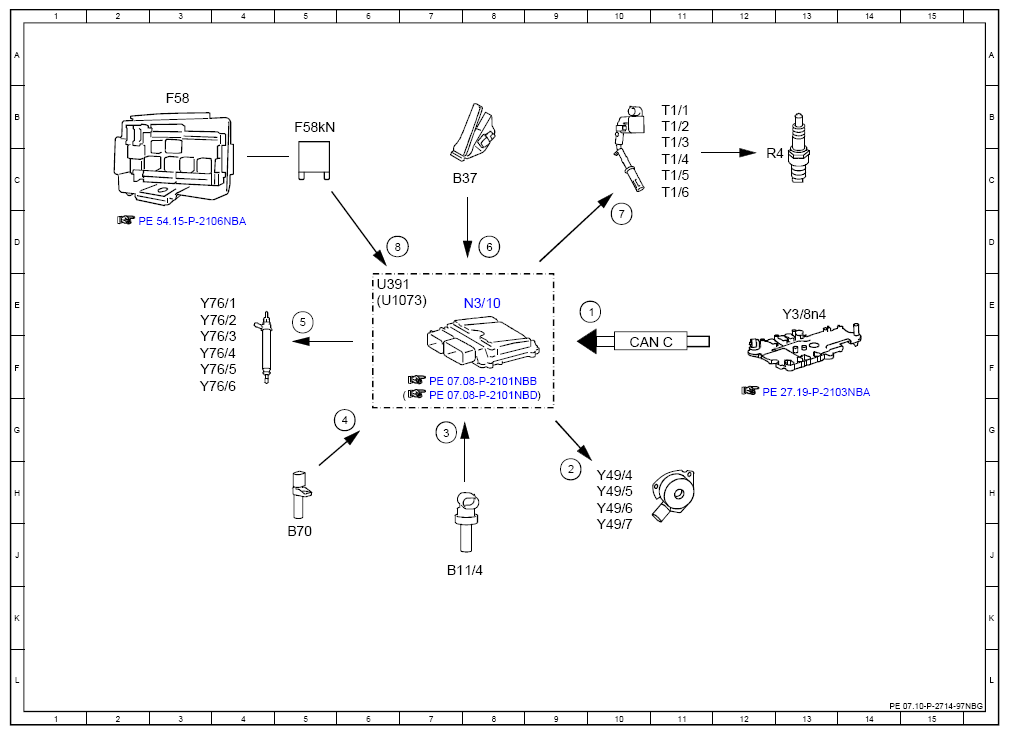

Electrical Function Schematic For Deceleration Fuel Shutoff - PE07.10-P-2714-97NBG
ENGINE 276 in MODEL 166 (except 166.063) as of model year 2016
ENGINE 276.8 in MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Shift stage, status | 10E |
| 2 | Camshaft solenoids, actuation | 9H |
| 3 | Coolant temperature sensor, signal | 7G |
| 4 | Engine speed, signal | 6G |
| 5 | Fuel injectors, actuation | 5E |
| 6 | Accelerator pedal sensor, signal | 8D |
| 7 | Ignition coils, actuation | 10D |
| 8 | Circuit 87, status | 6D |
| B11/4 | Coolant temperature sensor | 7J |
| B37 | Accelerator pedal sensor | 7C |
| B70 | Crankshaft Hall sensor | 5J |
| CAN | C Drive train CAN | 10F |
| F58 | Engine compartment fuse and relay module | 3B |
| F58kN | Circuit 87M relay | 5B |
| N3/10 | ME-SFI [ME] control unit | 8E |
| R4 | Spark plugs | 12C |
| T1/1 | Cylinder 1 ignition coil | 11B |
| T1/2 | Cylinder 2 ignition coil | 11B |
| T1/3 | Cylinder 3 ignition coil | 11B |
| T1/4 | Cylinder 4 ignition coil | 11C |
| T1/5 | Cylinder 5 ignition coil | 11C |
| T1/6 | Cylinder 6 ignition coil | 11C |
| U1073 | Valid for gasoline engine 276.9 | 6E |
| U391 | Valid for gasoline engine 276.8 | 6E |
| Y3/8n4 | Fully integrated transmission control unit | 13E |
| Y49/4 | Left intake camshaft solenoid | 10H |
| Y49/5 | Right intake camshaft solenoid | 10H |
| Y49/6 | Left exhaust camshaft solenoid | 10H |
| Y49/7 | Right exhaust camshaft solenoid | 10J |
| Y76/1 | Cylinder 1 fuel injector | 3E |
| Y76/2 | Cylinder 2 fuel injector | 3E |
| Y76/3 | Cylinder 3 fuel injector | 3F |
| Y76/4 | Cylinder 4 fuel injector | 3F |
| Y76/5 | Cylinder 5 fuel injector | 3F |
| Y76/6 | Cylinder 6 fuel injector | 3F |
