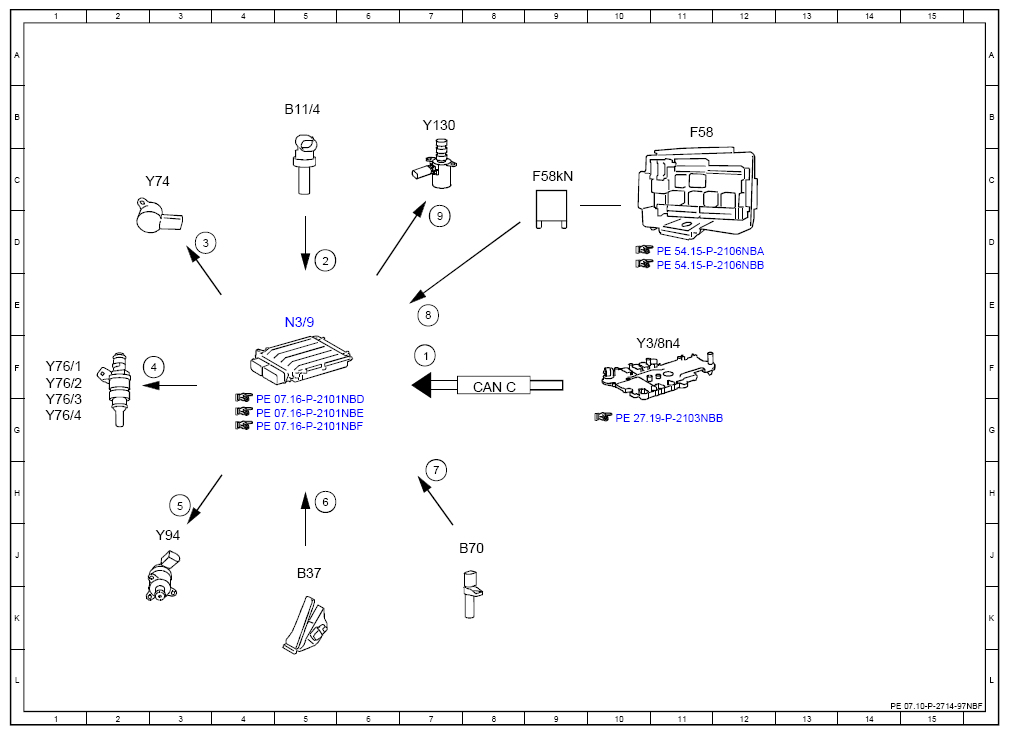

Electrical Function Schematic For Deceleration Fuel Shutoff - PE07.10-P-2714-97NBF
ENGINE 651.9 in MODEL 166 as of model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Shift stage, status | 7F |
| 2 | Coolant temperature sensor, signal | 5D |
| 3 | Pressure regulator valve, actuation | 3D |
| 4 | Fuel injectors, actuation | 3F |
| 5 | Quantity control valve, actuation | 3H |
| 6 | Accelerator pedal sensor, signal | 5H |
| 7 | Engine speed, signal | 7H |
| 8 | Circuit 87, status | 7E |
| 9 | Engine oil pump valve, actuation | 7D |
| B11/4 | Coolant temperature sensor | 5B |
| B37 | Accelerator pedal sensor | 5J |
| B70 | Crankshaft Hall sensor | 7J |
| CAN | C Drive train CAN | 8F |
| F58 | Engine compartment fuse and relay module | 11B |
| F58kN | Circuit 87M relay | 9C |
| N3/9 | CDI control unit | 5E |
| Y130 | Engine oil pump valve | 7B |
| Y3/8n4 | Fully integrated transmission control unit | 10F |
| Y74 | Pressure regulator valve | 2C |
| Y76/1 | Cylinder 1 fuel injector | 1F |
| Y76/2 | Cylinder 2 fuel injector | 1F |
| Y76/3 | Cylinder 3 fuel injector | 1G |
| Y76/4 | Cylinder 4 fuel injector | 1G |
| Y94 | Quantity control valve | 3J |
