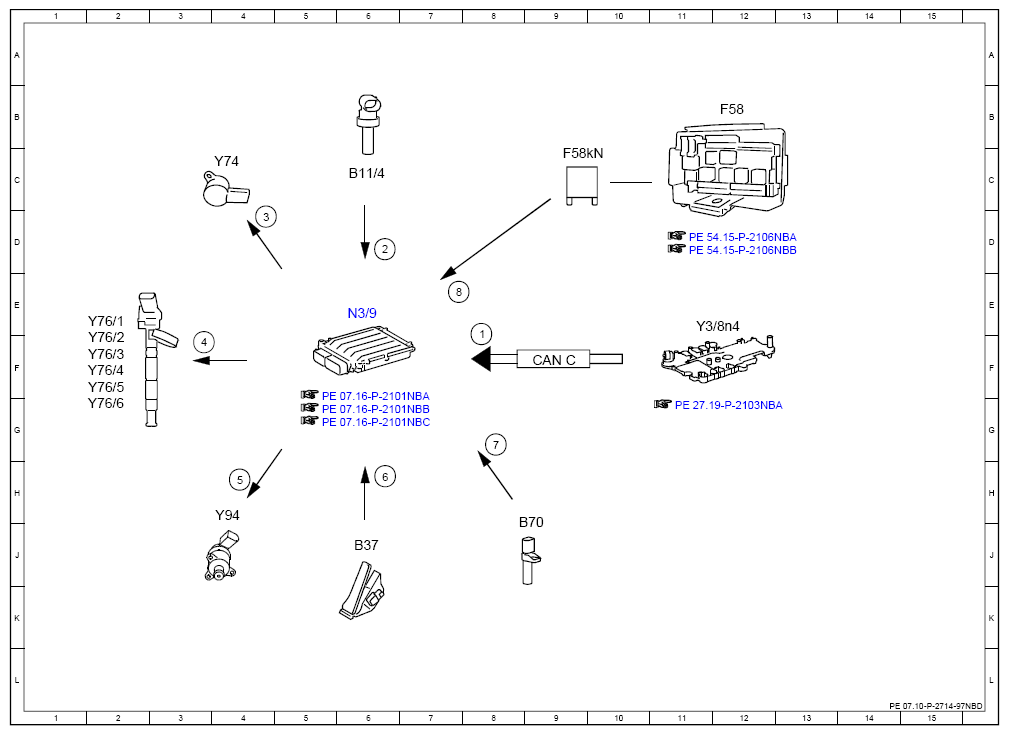

Electrical Function Schematic For Deceleration Fuel Shutoff - PE07.10-P-2714-97NBD
ENGINE 642.8 in MODEL 166 as of model year 2016
ENGINE 642.8 in MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Shift stage, status | 8F |
| 2 | Coolant temperature sensor, signal | 6D |
| 3 | Pressure regulator valve, actuation | 4D |
| 4 | Fuel injectors, actuation | 3F |
| 5 | Quantity control valve, actuation | 4H |
| 6 | Accelerator pedal sensor, signal | 6H |
| 7 | Engine speed, signal | 8G |
| 8 | Circuit 87, status | 7E |
| B11/4 | Coolant temperature sensor | 6C |
| B37 | Accelerator pedal sensor | 6J |
| B70 | Crankshaft Hall sensor | 8J |
| CAN C | Drive train CAN | 9F |
| F58 | Engine compartment fuse and relay module | 12B |
| F58kN | Circuit 87M relay | 9C |
| N3/9 | CDI control unit | 6E |
| Y3/8n4 | Fully integrated transmission control unit | 11E |
| Y74 | Pressure regulator valve | 4C |
| Y76/1 | Cylinder 1 fuel injector | 2E |
| Y76/2 | Cylinder 2 fuel injector | 2F |
| Y76/3 | Cylinder 3 fuel injector | 2F |
| Y76/4 | Cylinder 4 fuel injector | 2F |
| Y76/5 | Cylinder 5 fuel injector | 2F |
| Y76/6 | Cylinder 6 fuel injector | 2G |
| Y94 | Quantity control valve | 4H |
