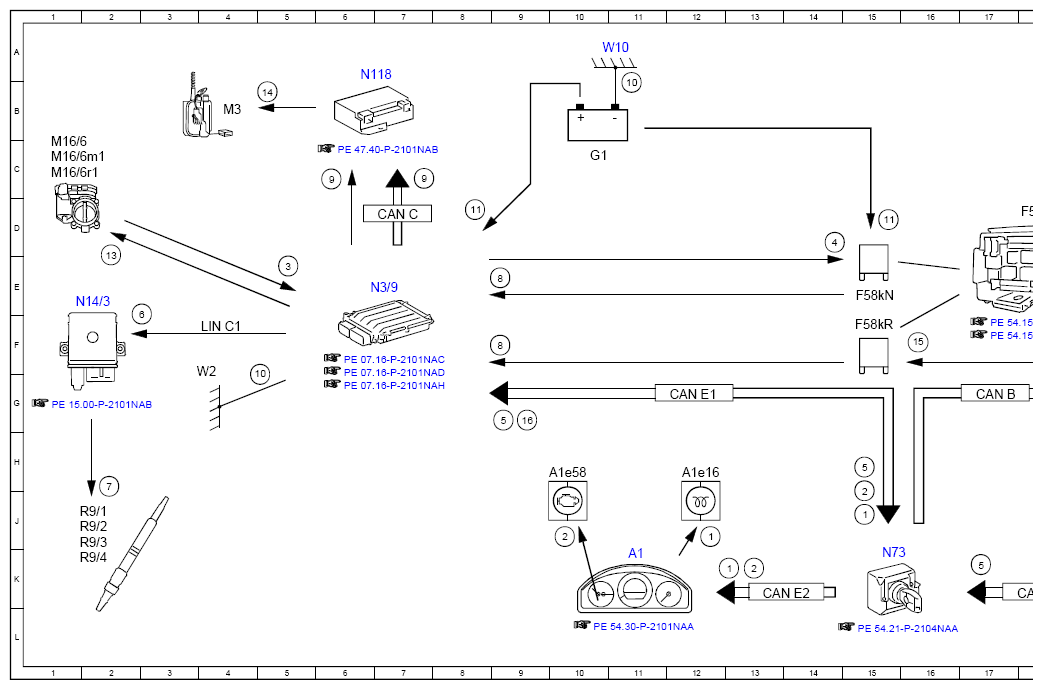

Electrical Function Schematic, Ignition On - PE07.10-P-2700-97NAA
ENGINE 651.9 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Preglow indicator lamp, actuation | 12J |
| 1 | Preglow indicator lamp, actuation | 13K |
| 1 | Preglow indicator lamp, actuation | 15J |
| 10 | Circuit 31, status | 4G |
| 10 | Circuit 31, status | 11B |
| 11 | Circuit 30, status | 8D |
| 11 | Circuit 30, status | 15D |
| 13 | Throttle valve actuator, actuation | 2E |
| 14 | Fuel pump, actuation | 5B |
| 15 | Circuit 15 relay, actuation | 16F |
| 16 | Circuit 15, status ON | 9G |
| 2 | Engine diagnosis indicator lamp, actuation | 10J |
| 2 | Engine diagnosis indicator lamp, actuation | 13K |
| 2 | Engine diagnosis indicator lamp, actuation | 15J |
| 3 | Throttle valve actuator, signal | 5E |
| 4 | Combustion engine circuit 87 relay, actuation | 14D |
| 5 | Engine control diagnosis, communication | 9G |
| 5 | Engine control diagnosis, communication | 19K |
| 5 | Engine control diagnosis, communication | 17K |
| 5 | Engine control diagnosis, communication | 15H |
| 6 | Glow, request | 3F |
| 7 | Glow plugs, actuation | 2H |
| 8 | Circuit 15, status ON | 9F |
| 8 | Circuit 15, status ON | 9E |
| 8 | Circuit 15, status ON | 19G |
| 9 | Fuel pump, request ON | 6C |
| 9 | Fuel pump, request ON | 7C |
| A1 | Instrument cluster | 11K |
| A1e16 | Preglow indicator lamp | 12H |
| A1e58 | Engine diagnosis indicator lamp | 10H |
| CAN B | Interior CAN | 17G |
| CAN C | Drive train CAN | 7D |
| CAN D | Diagnostic CAN | 18K |
| CAN E1 | Chassis CAN 1 | 12G |
| CAN E2 | Chassis CAN 2 | 13K |
| F58 | Engine compartment fuse and relay module | 18D |
| F58kN | Circuit 87M relay | 15E |
| F58kR | Circuit 15 relay | 15F |
| G1 | On-board electrical system battery | 10C |
| LIN C1 | Drive train LIN | 4F |
| M16/6 | Throttle valve actuator | 1C |
| M16/6m1 | Actuator motor | 1C |
| M16/6r1 | Actual value potentiometer 1 | 1C |
| M3 | Fuel pump (FP) | 4B |
| N10 | SAM control unit | 20E |
| N118 | Fuel pump control unit | 6A |
| N14/3 | Glow output stage | 2E |
| N3/9 | CDI control unit | 7E |
| N73 | Electronic ignition switch control unit | 15K |
| R9/1 | Cylinder 1 glow plug | 1J |
| R9/2 | Cylinder 2 glow plug | 1J |
| R9/3 | Cylinder 3 glow plug | 1J |
| R9/4 | Cylinder 4 glow plug | 1K |
| W10 | Front right on-board electrical system battery ground point | 11A |
| W2 | Right front ground point at lamp unit | 3G |
| X11/4 | Diagnostic connector | 20K |
