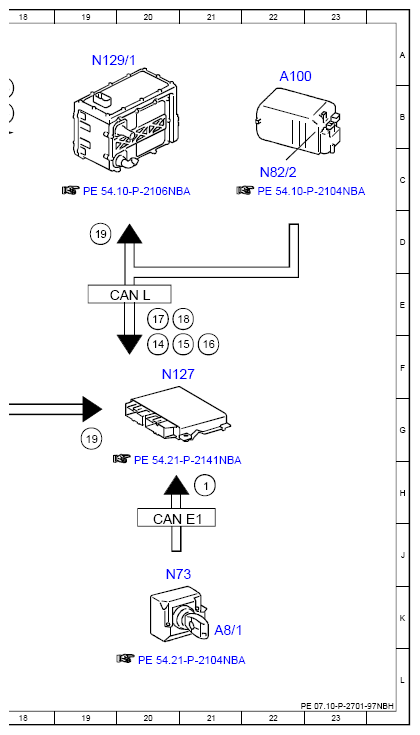

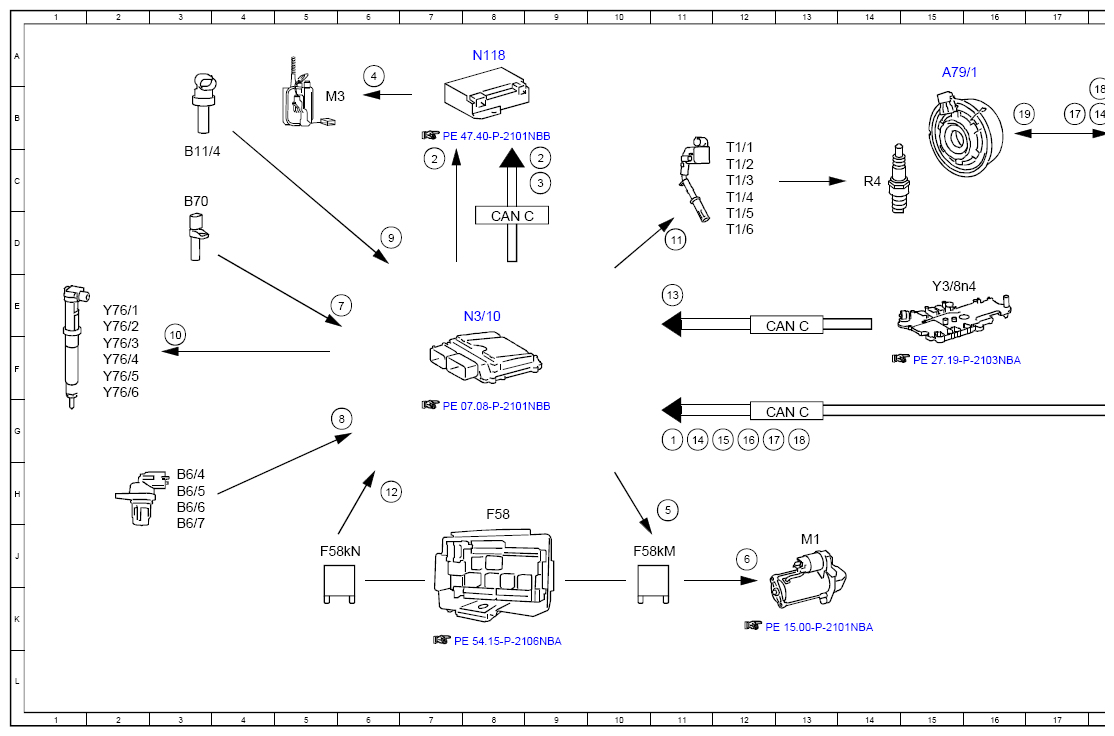

Electrical Function Schematic For Starting - PE07.10-P-2701-97NBH
ENGINE 276.8 in MODEL 166.063 as of model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine start, request | 11G |
| 1 | Engine start, request | 21H |
| 10 | Fuel injectors, actuation | 3F |
| 11 | Ignition coils, actuation | 11D |
| 12 | Circuit 87, status | 6H |
| 13 | Gear range, status | 11E |
| 14 | Electric machine, status | 11G |
| 14 | Electric machine, status | 20F |
| 14 | Electric machine, status | 18B |
| 15 | High-voltage battery voltage, signal | 12G |
| 15 | High-voltage battery voltage, signal | 21F |
| 16 | High-voltage battery temperature, signal | 12G |
| 16 | High-voltage battery temperature, signal | 21F |
| 17 | Electric machine motor torque, signal | 12G |
| 17 | Electric machine motor torque, signal | 17B |
| 17 | Electric machine motor torque, signal | 20E |
| 18 | Electric machine rpm, signal | 13G |
| 18 | Electric machine rpm, signal | 18B |
| 18 | Electric machine rpm, signal | 21E |
| 19 | Electric machine motor torque, request | 19G |
| 19 | Electric machine motor torque, request | 19D |
| 19 | Electric machine motor torque, request | 16B |
| 2 | Fuel pump, request ON | 7C |
| 2 | Fuel pump, request ON | 9C |
| 3 | Fuel pump, specified pressure request | 9C |
| 4 | Fuel pump, actuation | 6A |
| 5 | Starter circuit 50 relay, actuation | 11H |
| 6 | Starter, actuation | 12J |
| 7 | Engine speed, signal | 6E |
| 8 | Camshaft Hall sensor, signal | 6G |
| 9 | Coolant temperature sensor, signal | 6D |
| A100 | High-voltage battery module | 22A |
| A79/1 | Electric machine | 15A |
| A8/1 | Transmitter key | 21K |
| B11/4 | Coolant temperature sensor | 3C |
| B6/4 | Left intake camshaft Hall sensor | 3H |
| B6/5 | Right intake camshaft Hall sensor | 3H |
| B6/6 | Left exhaust camshaft Hall sensor | 3H |
| B6/7 | Right exhaust camshaft Hall sensor | 3J |
| B70 | Crankshaft Hall sensor | 3C |
| CAN C | Drive train CAN | 13G |
| CAN C | Drive train CAN | 13E |
| CAN C | Drive train CAN | 8D |
| CAN E1 | Chassis CAN 1 | 20H |
| CAN L | Hybrid CAN | 20E |
| F58 | Engine compartment fuse and relay module | 8H |
| F58kM | Starter circuit 50 relay | 10J |
| F58kN | Circuit 87M relay | 5J |
| M1 | Starter | 13J |
| M3 | Fuel pump (FP) | 5B |
| N118 | Fuel pump control unit | 8A |
| N127 | Drivetrain control unit | 20F |
| N129/1 | Power electronics control unit | 19A |
| N3/10 | ME-SFI [ME] control unit | 8E |
| N73 | Electronic ignition switch control unit | 20J |
| N82/2 | Battery management system control unit | 22C |
| R4 | Spark plugs | 14C |
| T1/1 | Cylinder 1 ignition coil | 12C |
| T1/2 | Cylinder 2 ignition coil | 12C |
| T1/3 | Cylinder 3 ignition coil | 12C |
| T1/4 | Cylinder 4 ignition coil | 12C |
| T1/5 | Cylinder 5 ignition coil | 12D |
| T1/6 | Cylinder 6 ignition coil | 12D |
| Y3/8n4 | Fully integrated transmission control unit | 15E |
| Y76/1 | Cylinder 1 fuel injector | 2E |
| Y76/2 | Cylinder 2 fuel injector | 2E |
| Y76/3 | Cylinder 3 fuel injector | 2F |
| Y76/4 | Cylinder 4 fuel injector | 2F |
| Y76/5 | Cylinder 5 fuel injector | 2F |
| Y76/6 | Cylinder 6 fuel injector | 2F |
