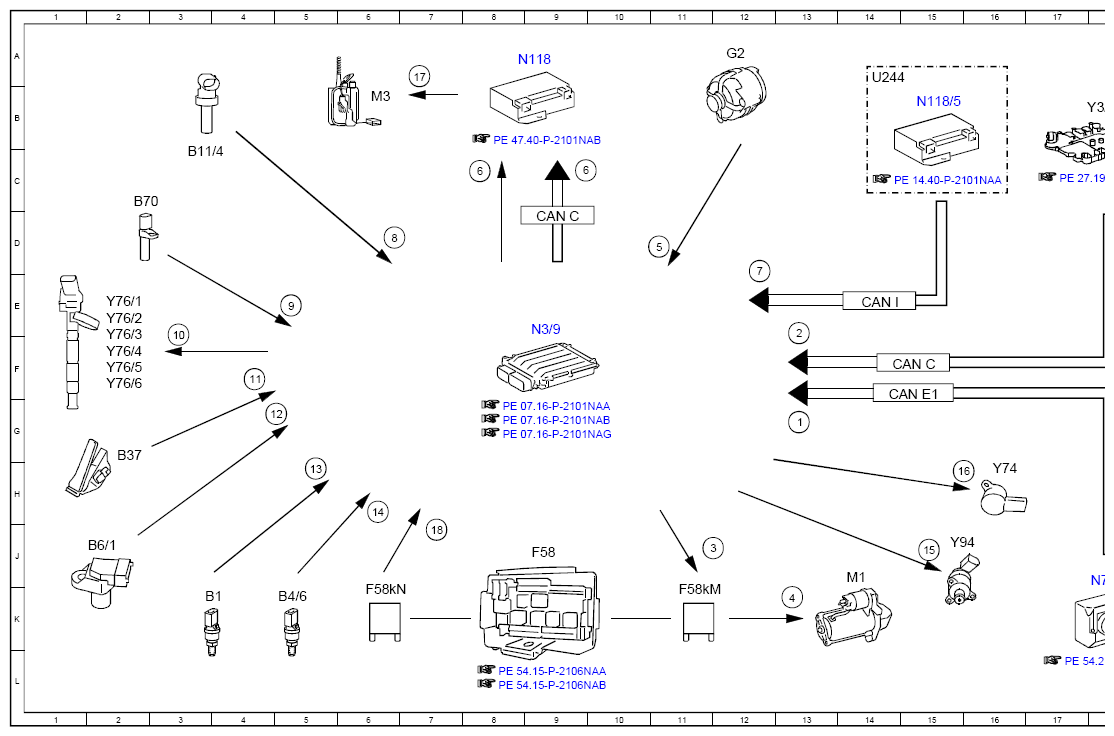

Electrical Function Schematic For Starting - PE07.10-P-2701-97NAC
ENGINE 642.8 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 50, status | 13G |
| 10 | Fuel injectors, actuation | 3F |
| 11 | Accelerator pedal sensor, signal | 4F |
| 12 | Camshaft Hall sensor, signal | 4G |
| 13 | Oil temperature sensor, signal | 5H |
| 14 | Fuel pressure, signal | 6H |
| 15 | Quantity control valve, actuation | 15J |
| 16 | Pressure regulator valve, actuation | 15H |
| 17 | Fuel pump, actuation | 7A |
| 18 | Circuit 87, status | 7J |
| 2 | Gear range, status | 13F |
| 3 | Starter circuit 50 relay, actuation | 11J |
| 4 | Starter, actuation | 13K |
| 5 | Circuit 61, status | 11D |
| 6 | Fuel pump, request ON | 8C |
| 6 | Fuel pump, request ON | 9C |
| 7 | Engine start enable, status | 12E |
| 8 | Coolant temperature sensor, signal | 6D |
| 9 | Engine speed, signal | 5E |
| A8/1 | Transmitter key | 18K |
| B1 | Engine oil temperature sensor | 3K |
| B11/4 | Coolant temperature sensor | 3C |
| B37 | Accelerator pedal sensor | 2G |
| B4/6 | Fuel high-pressure sensor | 5K |
| B6/1 | Camshaft Hall sensor | 2J |
| B70 | Crankshaft Hall sensor | 2C |
| CAN C | Drive train CAN | 9D |
| CAN C | Drive train CAN | 15F |
| CAN E1 | Chassis CAN 1 | 15F |
| CAN I | Drive train sensor CAN | 14E |
| F58 | Engine compartment fuse and relay module | 9J |
| F58kM | Starter circuit 50 relay | 11K |
| F58kN | Circuit 87M relay | 6K |
| G2 | Alternator | 12A |
| M1 | Starter | 14J |
| M3 | Fuel pump (FP) | 6B |
| N118 | Fuel pump control unit | 9A |
| N118/5 | AdBlue® control unit | 15B |
| N3/9 | CDI control unit | 9E |
| N73 | Electronic ignition switch control unit | 18J |
| U244 | Valid for BlueTEC | 14A |
| Y3/8 | Fully integrated transmission control unit | 18B |
| Y74 | Pressure regulator valve | 16H |
| Y76/1 | Cylinder 1 fuel injector | 2E |
| Y76/2 | Cylinder 2 fuel injector | 2E |
| Y76/3 | Cylinder 3 fuel injector | 2F |
| Y76/4 | Cylinder 4 fuel injector | 2F |
| Y76/5 | Cylinder 5 fuel injector | 2F |
| Y76/6 | Cylinder 6 fuel injector | 2F |
| Y94 | Quantity control valve | 15J |
