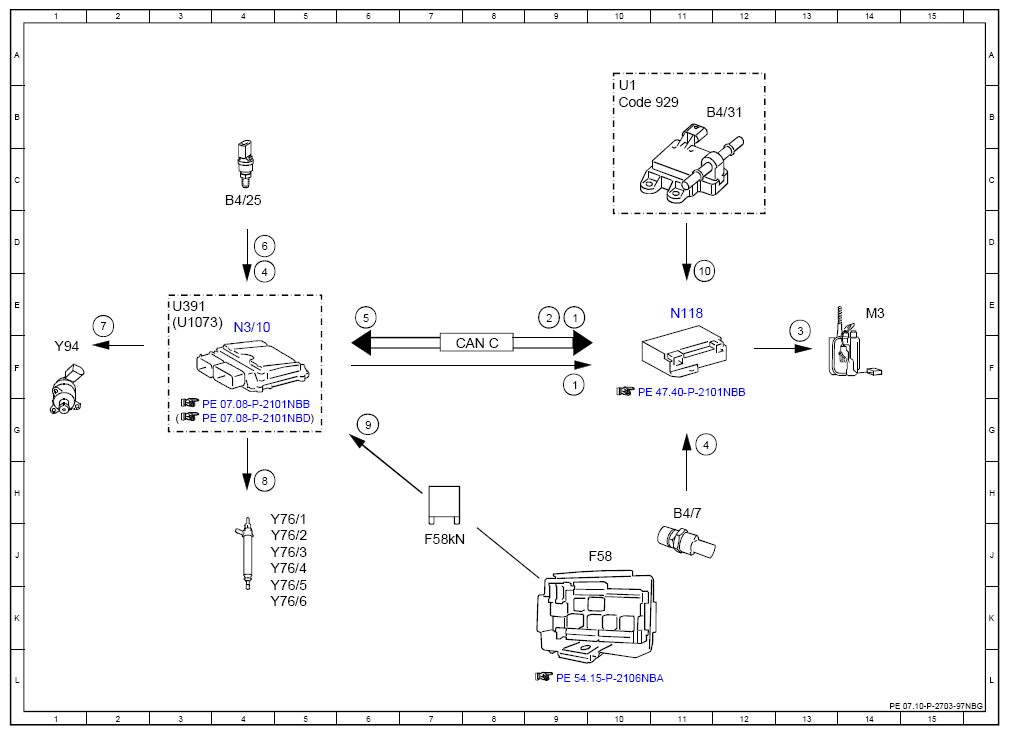

Electrical Function Schematic For Fuel Supply - PE07.10-P-2703-97NBG
ENGINE 276 in MODEL 166 as of model year 2016
ENGINE 276.8 in MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fuel pump, request ON | 9F |
| 1 | Fuel pump, request ON | 9E |
| 10 | Fuel quality sensor, signal | 11E |
| 2 | Fuel pump, specified pressure request | 9E |
| 3 | Fuel pump, actuation | 13E |
| 4 | Fuel pressure, signal | 4E |
| 4 | Fuel pressure, signal | 11G |
| 5 | Fuel pressure, status | 6E |
| 6 | Fuel temperature, signal | 4D |
| 7 | Quantity control valve, actuation | 2E |
| 8 | Fuel injectors, actuation | 4H |
| 9 | Circuit 87, status | 6G |
| B4/25 | Fuel tank pressure and temperature sensor | 4C |
| B4/31 | Fuel quality sensor | 12B |
| B4/7 | Fuel pressure sensor | 11H |
| CAN C | Drive train CAN | 8F |
| Code 929 | Engine for ethanol fuel | 10B |
| F58 | Engine compartment fuse and relay module | 10J |
| F58kN | Circuit 87M relay | 7J |
| M3 | Fuel pump (FP) | 14E |
| N118 | Fuel pump control unit | 11E |
| N3/10 | ME-SFI [ME] control unit | 4E |
| U1 | Valid for USA | 10B |
| U1073 | Valid for gasoline engine 276.9 | 3E |
| U391 | Valid for gasoline engine 276.8 | 3E |
| Y76/1 | Cylinder 1 fuel injector | 4J |
| Y76/2 | Cylinder 2 fuel injector | 4J |
| Y76/3 | Cylinder 3 fuel injector | 4J |
| Y76/4 | Cylinder 4 fuel injector | 4J |
| Y76/5 | Cylinder 5 fuel injector | 4K |
| Y76/6 | Cylinder 6 fuel injector | 4K |
| Y94 | Quantity control valve | 1F |
