Mount High-Pressure Lines - AR07.03-P-1010-02MMB
ENGINE 157, 278
MODIFICATION NOTES
| 04.07.2016 | Union nut, Fuel line to fuel distributor | BA07.03-P-1001-01E | |
| 04.07.2016 | Union nut Fuel line to high-pressure pump | BA07.03-P-1002-01E |
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 157 | Engine 278 | |||
|---|---|---|---|---|---|---|
| BA07.03-P-1001-01E | Union nut, fuel line to fuel distributor | In case of reusability | Nm | 22 | 22 | |
| For new lines | Stage 1 | Nm | 15 | 15 | ||
| Stage 2 | ∠° | 90 | 90 | |||
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 157 | Engine 278 | |||
|---|---|---|---|---|---|---|
| BA07.03-P-1002-01E | Union nut, fuel line to high-pressure pump | In case of reusability | Nm | 22 | 22 | |
| For new lines | Stage 1 | Nm | 15 | 15 | ||
| Stage 2 | ∠° | 90 | 90 | |||
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA07.03-P-1003-01E | Bolt, fuel line service valve to cylinder head cover | Nm | 9 | 9 |
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA07.03-P-1004-01E | Bolt, right bracket for fuel line clamp to high pressure pump drive housing/cylinder head | Nm | 14 | 14 |
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA07.03-P-1005-01E | Bolt, left bracket for high pressure line clamp to cylinder head cover/cylinder crankcase | Nm | 9 | 9 |
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA07.03-P-1006-01E | Bolt, fuel line clamp to charge air distribution line | Nm | 5 | 5 |
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA07.03-P-1008-01E | Fuel line union nut on service valve | Nm | 24 | 24 |
The union nuts for the low-pressure line (1a) and the high-pressure lines (1b, 1c, 1d) may only be tightened with torque after
installation of the low-pressure line (1a) and the high-pressure lines (1b, 1c, 1d).
Leakage will occur otherwise. Do not kink or bend the low-pressure line (1a) and high-pressure line (1b, 1c, 1d).

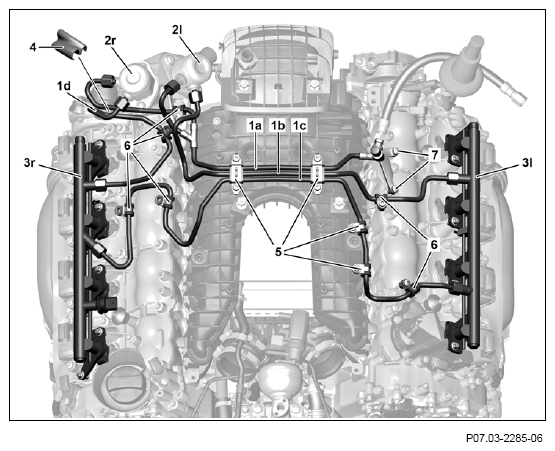

- Mount low-pressure line (1a) loosely on high-pressure pumps (2l, 2r) and on the left cylinder head cover.
Tighten screw/bolts (7) after alignment of the low-pressure line (1a) and tighten the high-pressure lines (1b, 1c, 1d) using torque.
- Mount high-pressure line (1b) on left rail (3l) and on left high-pressure pump (2l).
- Mount high-pressure line (1c) on left and right rail (3l, 3r).
- Mount high-pressure line (1b) on right rail (3r) and on right high-pressure pump (2lr).
Ensure correct routing of the low-pressure line (1a) and the high-pressure lines (1b, 1c, 1d).
- Mount clamps (5) for the low-pressure line (1a) and the high-pressure lines (1b, 1c) on the intake manifold.
- Mount clamps (6) for the low-pressure line (1a) and the high-pressure lines (1b, 1c, 1d) on cylinder head covers.
- Mount union nut of the fuel line on fuel distributor for low-pressure line (1a).
- Tighten union nuts with torque.
Comply with the tightening torques exactly.
Leaks can occur otherwise.
- Mount plastic retaining clip (4) between the low-pressure line (1a) and high-pressure line (1d).
