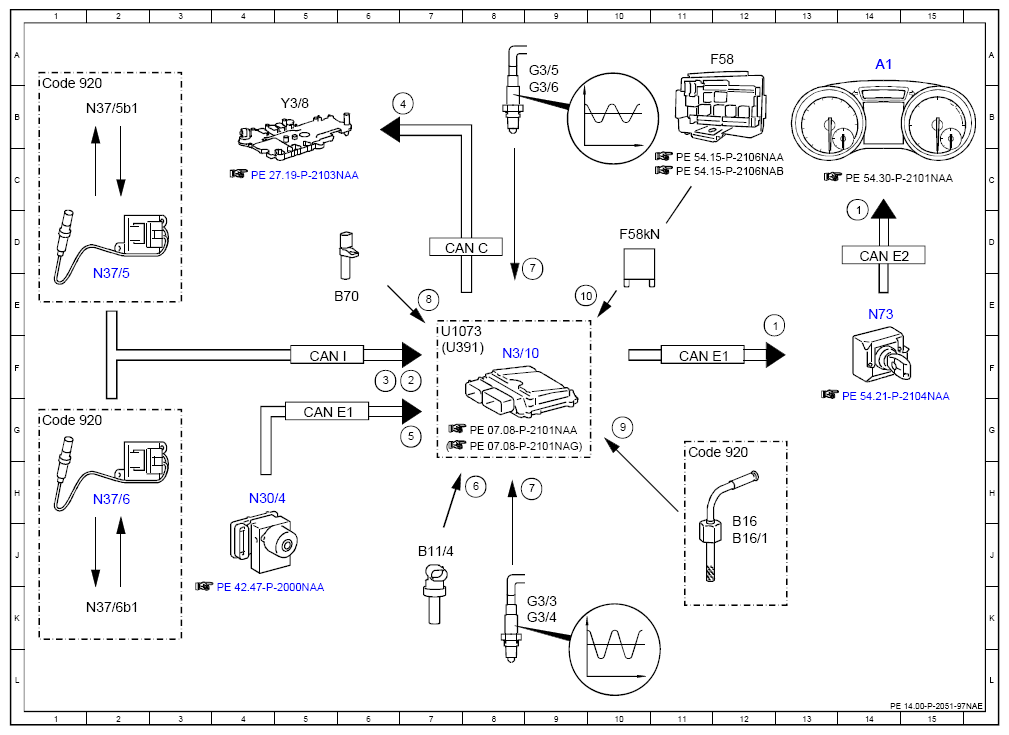

Electrical Function Schematic For Exhaust Treatment - PE14.00-P-2051-97NAE

ENGINE 276 in MODEL 166 up to model year 2016

Code:	Designation:	Position:
1	Engine diagnosis indicator lamp, actuation	12E
1	Engine diagnosis indicator lamp, actuation	14D
10	Cireuit 87, status	9E
2	Nitrogen oxide proportion, status	7F
3	Oxygen proportion, status	6F
4	Shift point, increase request	7B
5	Wheel speed, signal	7G
6	Coolant temperature sensor, signal	8H
7	Oxygen sensor, signal	9H
7	Oxygen sensor, signal	9D
8	Engine speed, signal	7E
9	Exhaust temperature, signal	10G
A1	Instrument cluster	14A
B11/4	Coolant temperature sensor	7J
B16	Temperature sensor upstream of NOx storage catalytic converter, right	12J
B16/1	Temperature sensor upstream of NOx storage catalytic converter, left	12J
B70	Crankshaft Hall sensor	5E
CAN C	Drive train CAN	7D
CAN E1	Chassis CAN 1	5G
CAN E1	Chassis CAN 1	11F
CAN E2	Chassis CAN 2	14D
CAN I	Drive train sensor CAN	5F
Code 920	Gasoline direct injection with stratified charge	1G
Code 920	Gasoline direct injection with stratified charge	1B
Code 920	Gasoline direct injection with stratified charge	11G
F58	Engine compartment fuse and relay module	12A
F58kN	Cireuit 87M relay	10D
G3/3	Left oxygen sensor upstream of catalytic converter	9K
G3/4	Right oxygen sensor upstream of catalytic converter	9K
G3/5	Left oxygen sensor downstream of catalytic converter	9A
G3/6	Right oxygen sensor downstream of catalytic converter	9B
N3/10	ME-SFI [ME] control unit	8F
N30/4	Electronic Stability Program control unit	4H
N37/5	Left NOx sensor control unit	2E
N37/5b1	Left NOx sensor	2B
N37/6	Right NOx sensor control unit	2H
N37/6b1	Right NOx sensor	2K
N73	Electronic ignition switch control unit	14E
U1073	Val id for gasoline engine 276.9	7F
U391	Valid for gasoline engine 276.8	7F
Y3/8	Fully integrated transmission control unit	5B
