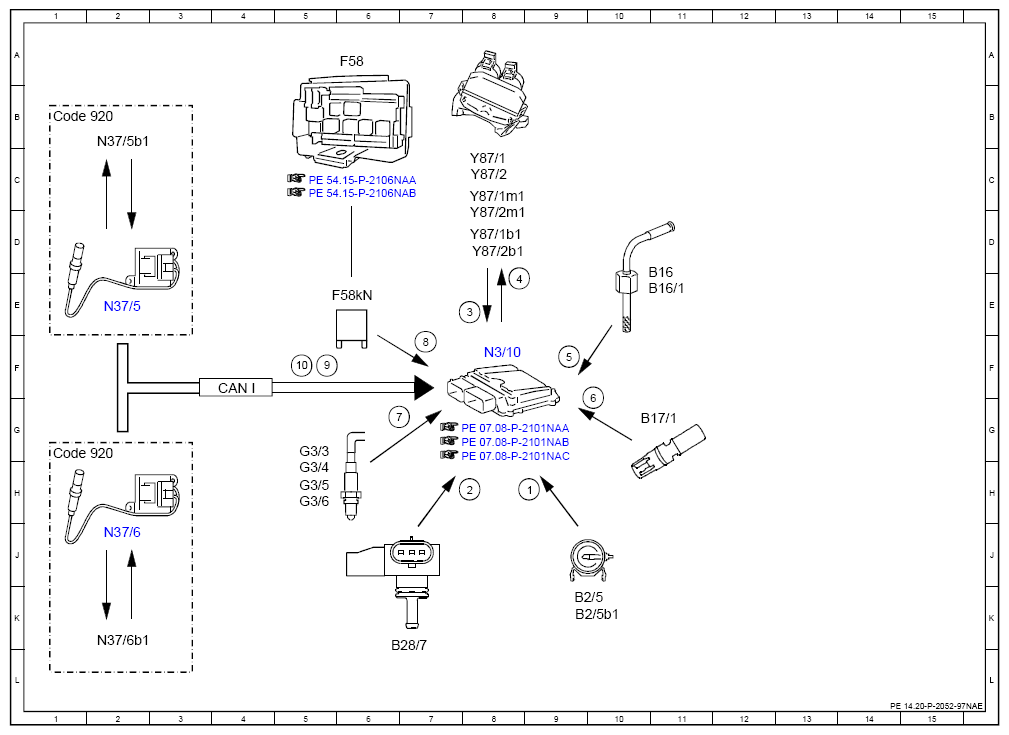

Electrical Function Schematic For Exhaust Gas Recirculation - PE14.20-P-2052-97NAE
ENGINE 276.9 in MODEL 166 up to model year 2016 with CODE 920 (Direct petrol injection with stratified charging)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | 9H | |
| 10 | Oxygen proportion, status | 5F |
| 2 | Engine load, signal | 8H |
| 3 | Hall sensors, signal | 8E |
| 4 | Actuator motors, actuation | 8E |
| 5 | Exhaust temperature, signal | 9F |
| 6 | Intake manifold intake air temperature sensor, signal | 10G |
| 7 | Oxygen sensor, signal | 6G |
| 8 | Circuit 87, status | 7F |
| 9 | Nitrogen oxide proportion, status | 5F |
| B16 | Temperature sensor upstream of NOx storage catalytic converter, right | 10E |
| B16/1 | Temperature sensor upstream of NOx storage catalytic converter, left | 10E |
| B17/1 | Intake manifold intake air temperature sensor | 10G |
| B2/5 | Hot film mass air flow sensor | 9K |
| B2/5b1 | Intake air temperature sensor | 9K |
| B28/7 | Pressure sensor downstream of throttle valve | 7L |
| CAN I | Drive train sensor CAN | 4F |
| Code 920 | Gasoline direct injection with stratified charge | 1G |
| Code 920 | Gasoline direct injection with stratified charge | 1B |
| F58 | Engine compartment fuse and relay module | 6A |
| F58kN | Circuit 87M relay | 6E |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 5G |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 5H |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 5H |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 5H |
| N3/10 | ME-SFI [ME] control unit | 8F |
| N37/5 | Left NOx sensor control unit | 2E |
| N37/5b1 | Left NOx sensor | 2B |
| N37/6 | Right NOx sensor control unit | 2J |
| N37/6b1 | Right NOx sensor | 2K |
| Y87/1 | Right exhaust gas recirculation positioner | 8C |
| Y87/1b1 | Right exhaust gas recirculation Hall sensor | 8D |
| Y87/1m1 | Right exhaust gas recirculation actuation motor | 8C |
| Y87/2 | Left exhaust gas recirculation positioner | 8C |
| Y87/2b1 | Left exhaust gas recirculation Hall sensor | 8D |
| Y87/2m1 | Left exhaust gas recirculation actuation motor | 8D |
