Remove/Install Injection Nozzle For Exhaust Aftertreatment System - AR14.40-P-2000GZB

ENGINE 642 in MODEL 164, 166, 212, 218, 221, 251 with CODE U42 (BlueTEC diesel exhaust treatment (SCR))

ENGINE 642 in MODEL 292 with CODE U77 (Diesel Emission control BLUETEC (SCR))

ENGINE 642, 651 in MODEL 212, 218 with CODE U77 (Diesel Emission control BLUETEC (SCR))

ENGINE 642.886 in MODEL 463.306/336/346

ENGINE 642.887 in MODEL 463.348

ENGINE 651 in MODEL 166

with CODE U42 (BlueTEC diesel exhaust treatment (SCR))

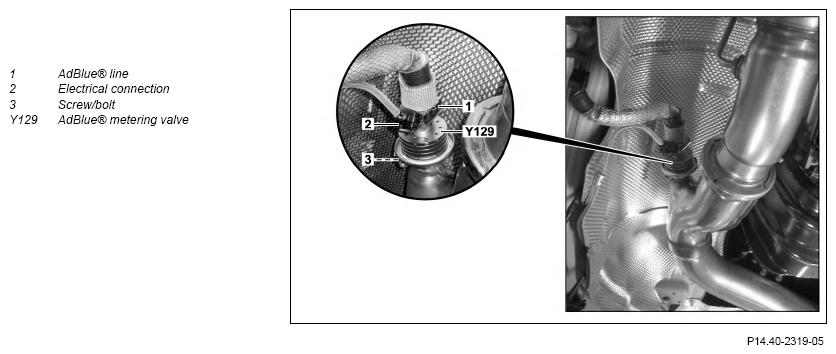

Shown on model 251

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of burn injuries and scalding  when working at AdBlue lines and the components attached to them. Risk of injury  to skin and eyes when handling AdBlue. Risk of poisoning  caused by swallowing AdBlue	Pour AdBlue into suitable containers only. Wait until the pressure is released before starting any work on the exhaust aftertreatment system.	AS14.40-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on use, material properties and handling of AdBlue®		AH14.40-N-0001-01AB
	Remove/install
1	Lift vehicle on vehicle lift	Engine 642 in model 164, 166, 212, 218, 221, 251 with code U42 (BlueTEC diesel exhaust treatment (SCR)) Engine 642 in model 292 with code U77 (Diesel Emission control BLUETEC (SCR)) Engine 642, 651 in model 212, 218 with code U77 (Diesel Emission control BLUETEC (SCR)) Engine 642.886 in model 463.306/336/346 Engine 642.887 in model 463.348 Engine 651 in model 166 with code U42 (BlueTEC diesel exhaust treatment (SCR))
		Engine 642.886 in model 463.306/336/346 Engine 642.887 in model 463.348	AR00.60-P-1000G
		Model 251 with engine 642 with code U42 (BlueTEC diesel exhaust treatment (SCR))	AR00.60-P-1000RT
		Model 221 with engine 642 with code U42 (BlueTEC diesel exhaust treatment (SCR))	AR00.60-P-1000SX
		Model 164, 166 with engine 642 with code U42 (BlueTEC diesel exhaust treatment (SCR)) Model 166 with engine 651 with code U42 (BlueTEC diesel exhaust treatment (SCR)) Model 292 with engine 642 with code U77 (Diesel Emission control BLUETEC (SCR))	AR00.60-P-1000GZ
2	Pull back protective sheath over AdBlue® line (1)
3	Disconnect AdBlue® line (1) and close off openings with stop plug	Replace sealing ring. Record plug	Fig 2
4	Release and disconnect electrical connection (2)
5	Remove screw/bolt (3) and remove clamp	Replace clamp if necessary.
		Engine 651 in model 212 with code U77 (Diesel Emission control BLUETEC (SCR)) except code U42 (BlueTEC diesel exhaust treatment (SCR)) Bolt, AdBlue® metering valve clamp to exhaust system	*BA14.40-P-1009-02D
		Engine 642.886 in model 463.306/336/346 Engine 642.887 in model 463.348 Bolt, metering valve profiled clamp to exhaust pipe in the middle	*BA49.10-P-1008-01AB
		Engine 642 in model 164, 166, 212, 218, 221, 251 with code U42 (BlueTEC diesel exhaust treatment (SCR)) Engine 642 in model 212, 218 with code U77 (Diesel Emission control BLUETEC (SCR)) Engine 642 in model 292 with code U77 (Diesel Emission control BLUETEC (SCR)) Engine 651 in model 166 with code U42 (BlueTEC diesel exhaust treatment (SCR)) Engine 651 in model 218 with code U77 (Diesel Emission control BLUETEC (SCR)) Bolt, AdBlue® metering valve clamp to exhaust system	*BA14.40-P-1011-02A
6	Remove AdBlue® metering valve (Y129) at exhaust pipe	Ensure correct positioning of the AdBlue® metering valve (Y129). The lugs of the AdBlue® metering valve (Y129) must sit in the grooves of the exhaust pipe. Non-observation leads to wrong assembly and damage to the AdBlue® metering valve (Y129). Replace seal.
	Clean
7	Clean AdBlue® line (1) at connection
8	Clean seat of the AdBlue® metering valve (Y129) in exhaust pipe and close off exhaust pipe with protective cover	Set of protective covers	Fig 1
9	Install in the reverse order
10	Read out fault memory and clear if necessary
			AD00.00-P-2000-04A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Perform an engine test run and check exhaust system in the area of the AdBlue® metering valve (Y129) for leaktightness

Fig 1: Identifying Set Of Protective Covers (001 589 01 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
