Remove/Install Exhaust Gas Recirculation Positioner - AR14.20-P-1020OGR
ENGINE 642 in MODEL 166, 292
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 |
Drain coolant at radiator | AR20.00-P-1142GQ | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 2 | Open engine hood and move to vertical position | Engine 642 in model 166, 292 Engine 642 in model 166 |
AR88.40-P-1000GQ |
| 3 | Remove cover over the left suspension strut tower and left section of the bulkhead | ||
| 4 | Remove water drain duct on the left suspension strut tower | ||
| 5 | Remove left-hand air filter housing | AR09.10-P-1150OGR | |
| 6 | Remove left noise damper | ||
| 7 | Detach bracket from engine wiring harness on left cylinder head cover | ||

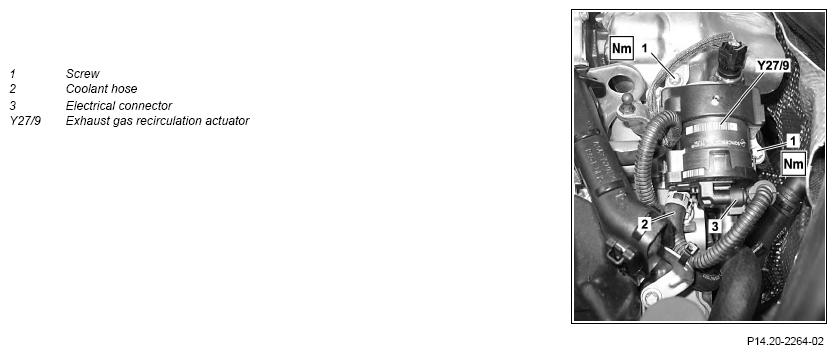

| 8 | Detach coolant hose (2) for exhaust gas recirculation actuator (Y27/9) from coolant line | ||
| 9 | Disconnect electrical connection (3) | ||
| 10 | Remove screw/bolt (1) | *BA14.20-P-1002-01G | |
| 11 | Remove exhaust gas recirculation actuator (Y27/9) | ||
| 12 | Install in the reverse order | ||
| 13 |
Pour in coolant | AR20.00-P-1142GQ | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 14 | Check cooling system for leaktightness | AR20.00-P-1010GQ | |
| 15 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Check for leaktightness with engine running |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 642.82/83/85/86/87/886/887/9 | |
|---|---|---|---|
| BA14.20-P-1002-01G | Bolt, exhaust gas recirculation positioner to charge air distributor | Nm | 12 |
