Notes On Sealant Path For Timing Case Cover - AH01.40-P-1000-01CD

ENGINE 651

General information:

• Sealing surface:
  • Free of anticorrosion agents
  • Free of machining residues
  • Oil and grease-free
  • Dust-free
• The sealing surface must be flat (replace bent components).

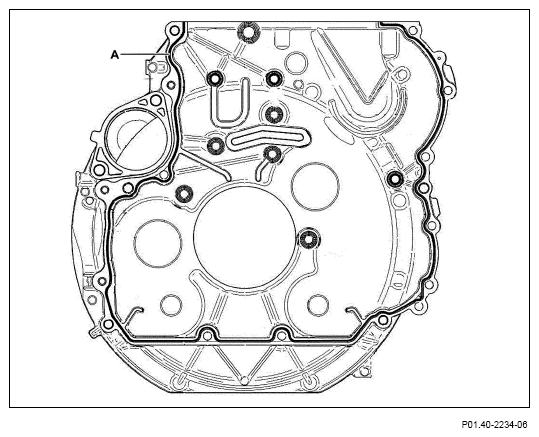

• Line (A) identifies the sealant run.
• Discontinuity of the sealant bead is not permissible.
• Do not spread sealing bead.
• Component temperature: min. +7°C up to a max. of +25°C
• Sealant temperature: min. +7°C up to a max. of +25°C
• Maximum assembly time: 7 min.
• Sealant bead diameter: 2 mm
• Nozzle diameter: 1.5 mm
