Notes On Sealant Path For Oil Pan - AH01.45-P-0001-01CD

ENGINE 651 in MODEL 166, 204, 205, 207, 212, 218, 221, 222, 253

General information:

• The sealing surface must be free of anticorrosion agents, free of machining residues, oil and free of grease and free of dust.
• The sealing surface must be flat (replace bent components).

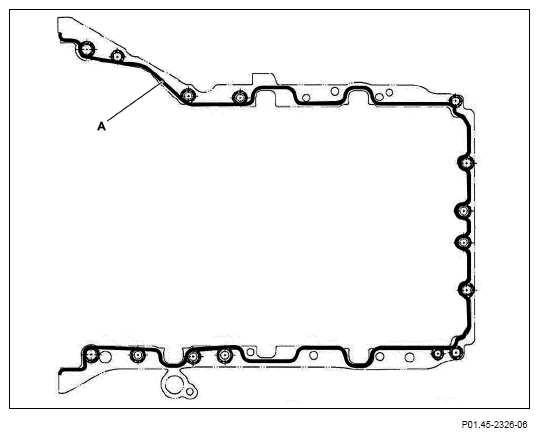

• Line (A) identifies the sealant path.
• Discontinuity of the sealant bead is not permissible.
• Do not spread sealing bead.
• Component temperature: At least 7 °C to maximum 25 °C
• Sealant temperature: At least 7 °C to maximum 25 °C
• Maximum assembly time: 7 minutes
• Sealant bead diameter: 2 mm
• Nozzle diameter: 1.5 mm
