Remove/Install Noise Damper Downstream Of Charge Air Cooler - AR09.40-P-6925GZB

ENGINE 642 in MODEL 164, 166, 251, 292

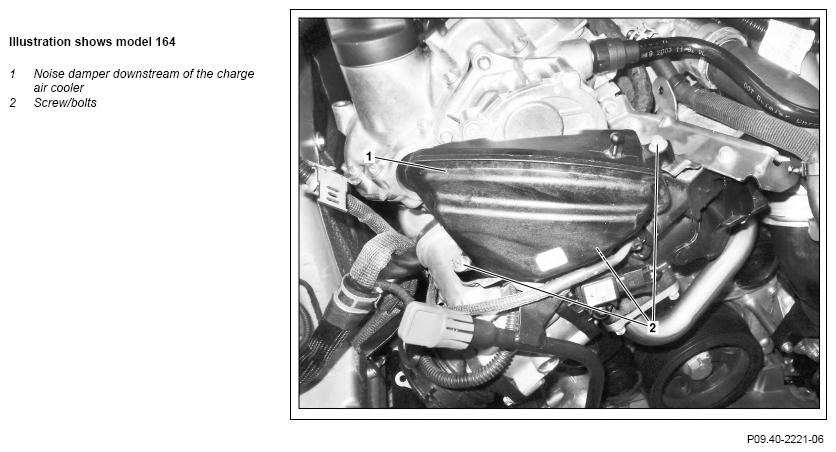

Illustration shows model 164

	Remove/install
1	Removes strut tower brace	Engine 642 in model 164.8 Remove strut tower brace from strut tower mounts.	AR62.30-P-2500GY
2	Remove engine cover	Engine 642 in model 164, 166, 251, 292 Engine 642 in model 164	AR01.10-P-2405GZB
		Engine 642 in model 251	AR01.10-P-2405RTB
3	Remove screw/bolts (2)	Noise damper downstream of charge air cooler to mixing chamber	*BA09.41-P-1007-01J
4	Remove noise damper downstream of charge air cooler (1)	Check the sealing ring for damage and replace if necessary.
5	Install in the reverse order
6	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Carry out an engine test run	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 642
BA09.41-P-1007-01J	Noise damper downstream of charge air cooler to mixing chamber	Nm	9
