Remove/Install Engine Charge Air Channel Downstream Of Charge Air Cooler - AR09.41-P-8624OGR
ENGINE 642 in MODEL 166, 292
MODIFICATION NOTES
| 16.03.2016 | Engine charge air duct after intercooler to throttle valve actuator | BA09.41-P-1005-01J |
| Remove/install | |||

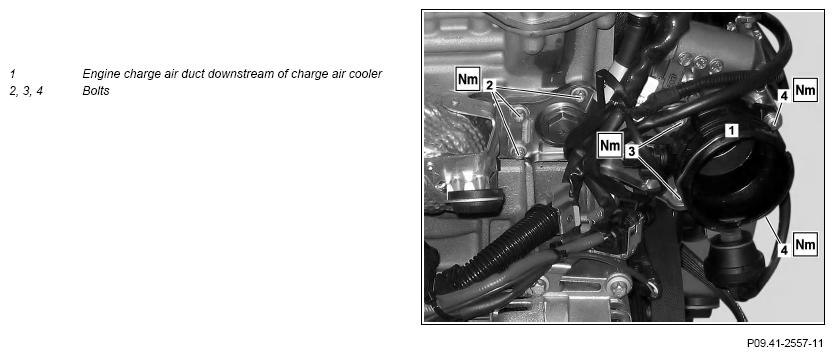

| 1 | Detach charge air hose at engine charge air duct downstream of charge air cooler (1) | AR09.41-P-8625OGR | |
| 2 | Disconnect electrical connection at charge air temperature sensor | ||
| 3 | Remove right air filter housing | AR09.10-P-1150OGR | |
| 4 | Remove screw/bolts (2) | *BA09.41-P-1006-01J | |
| 5 | Remove bolts (3, 4) | *BA09.41-P-1005-01J | |
| 6 | Remove engine charge air duct downstream of charge air cooler (1) | ||
| 7 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check for leaktightness |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BA09.41-P-1005-01J | Engine charge air duct downstream of charge air cooler to throttle valve actuator | M5 | Nm | 5 |
| M6 | Nm | 9 | ||
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA09.41-P-1006-01J | Bracket, throttle valve actuator to cylinder head | Nm | 9 |
