Remove/Install Fuel Injectors - AR07.03-P-0004GQ

ENGINE 157, 276, 278 in MODEL 166

ENGINE 157, 276, 278 in MODEL 292

ENGINE 276 in MODEL 251

MODIFICATION NOTES

22.02.2017 SPECIAL TOOL Stop plug new, added. Operation step 4 270 589 03 91 00

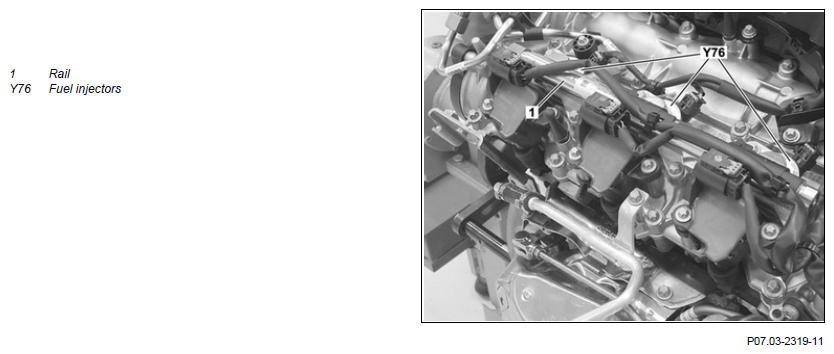

Shown on model 166.062 with engine 276.821

G11974106Courtesy of MERCEDES-BENZ USA

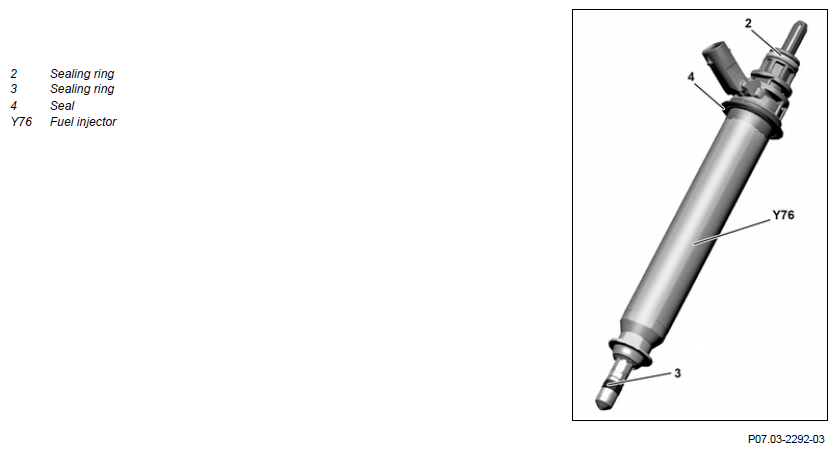

Shown on model 166.062 with engine 276.821

G11974107Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVINGINSTALLING Remove/install
1 Disconnect battery ground line Engine 157, 276, 278 in model 166
Engine 157, 276, 278 in model 292
AR54.10-P-0003GZ
Engine 276 in model 251 AR54.10-P-0003RT
2 Remove left or right rail (1) Engine 157, 278 in model 166
Engine 157, 278 in model 292
AR07.03-P-1010MLJ
Engine 276 in model 166, 251, 292
INSTALLATION IMPORTANT Only install upper engine cover after the leak test.
AR07.03-P-1010GQ
3 Mark fuel injectors (Y76) relative to the respective cylinder NOTES
If fuel injectors (Y76) are replaced, the transport protective caps on the fuel injectors (Y76) should not be removed until one hour before assembly at the earliest.
Leaks can occur otherwise.
INSTALLATION IMPORTANT When reusing the fuel injectors (Y76) they must be inserted into the cylinder in which the fuel injectors (Y76) were previously installed.

4 Pull out fuel injectors (Y76) from cylinder head and close off injector shaft bores with stop plugs INSTALLATION IMPORTANT The fuel injectors (Y76) must be installed together with the rail (1).
SPECIAL TOOL Plug
Fig 1
For a jammed in fuel injector (Y76)
↓
Remove injection nozzle (Y76).
AR07.03-P-0004-03MM
SPECIAL TOOL Puller Fig 2
5 Check fuel injectors (Y76) for external damage In a case of damage to the stems or to the mounts of the sealing package on the fuel injectors (Y76)
↓
Replace the affected fuel injector (Y76).

6 Replace sealing rings (2) and seals (4) on the fuel injectors (Y76)
7 Replace sealing rings (3) for fuel injectors (Y76) NOTES
Fuel injectors (Y76) must be installed immediately after calibration of the sealing rings (3).
The sealing rings (3) will swell otherwise under the influence of the air humidity and will therefore be damaged in during assembly.
AR07.03-P-0004-01MM
Assembly cleaner *BR00.45-Z-1028-04A
SPECIAL TOOL Assembly tool Fig 3
8 Install in the reverse order
INSPECT Check
9 Store injector quantity compensation (IMA) coding in engine management control unit For installation of new fuel injectors (Y76).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
10 Carry out an engine test run, checking the engine for proper operation and leaktightness
11 Read out and erase fault memory
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
12 Install upper engine cover
Fig 1: Identifying Plug (270 589 03 91 00)
G11974108Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Puller (278 589 00 33 00)
G11128361Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Assembly Tool (272 589 00 43 00)
G10247776Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
