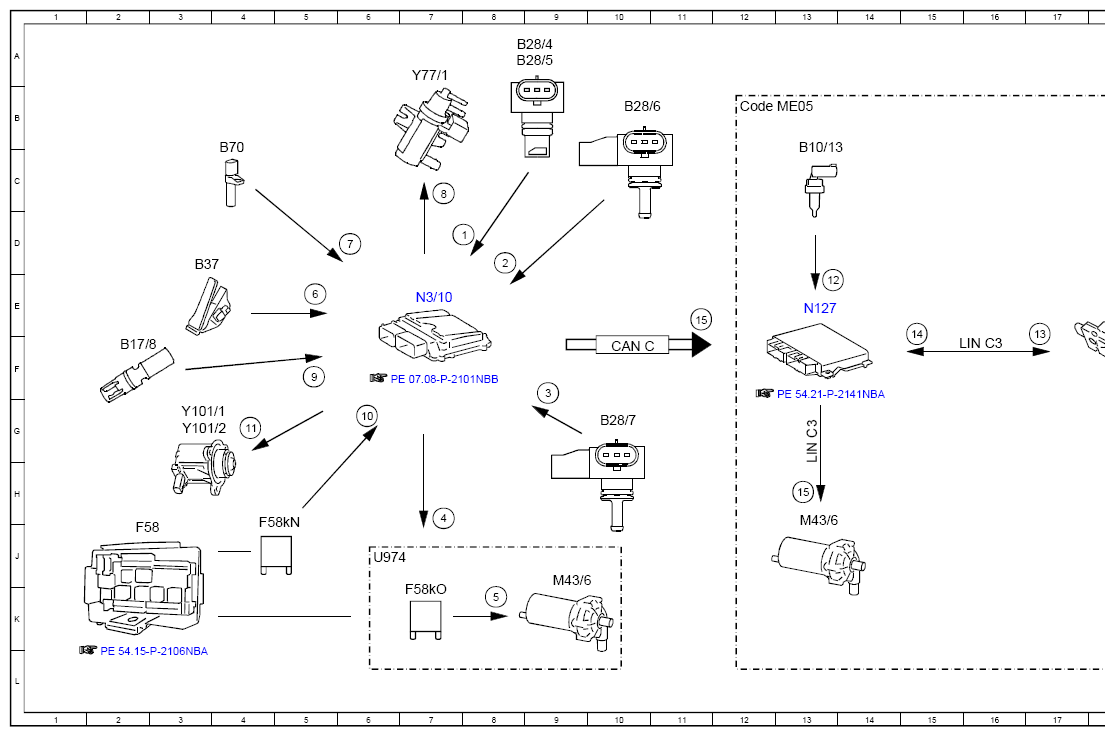

Electrical Function Schematic For Charging - PE09.00-P-2050-97NBA
ENGINE 276.8 in MODEL 166 as of model year 2016
ENGINE 276.8 in MODEL 292
| Code: | Designation: | Position |
|---|---|---|
| 1 | Pressure sensor downstream of air filter, signal | 7D |
| 10 | Circuit 87, status | 6G |
| 11 | Bypass air switchover valve, actuation | 4G |
| 12 | Low-temperature circuit temperature sensor, signal | 13E |
| 13 | Low-temperature circuit switchover valve, actuation | 17E |
| 14 | Low-temperature circuit switchover valve, status | 15E |
| 15 | Low temperature circuit circulation pump 1, actuation | 13H |
| 15 | Low temperature circuit circulation pump 1, actuation | 11E |
| 2 | Boost pressure, signal | 8D |
| 3 | Intake manifold pressure, signal | 9F |
| 4 | Turbocharger relay, actuation | 7H |
| 5 | Charge air cooler circulation pump, actuation | 8K |
| 6 | Accelerator pedal sensor, signal | 5E |
| 7 | Engine speed, signal | 6D |
| 8 | Boost pressure control pressure transducer, actuation | 7C |
| 9 | Charge air temperature sensor, signal | 5F |
| B10/13 | Low-temperature circuit temperature sensor | 13C |
| B17/8 | Charge air temperature sensor | 2F |
| B28/4 | Pressure sensor downstream of left cylinder bank air filter | 9A |
| B28/5 | Pressure sensor downstream of air filter | 9A |
| B28/6 | Pressure sensor upstream of throttle valve | 10B |
| B28/7 | Pressure sensor downstream of throttle valve | 10G |
| B37 | Accelerator pedal sensor | 3D |
| B70 | Crankshaft Hall sensor | 4C |
| CAN C | Drive train CAN | 10F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 12B |
| F58 | Engine compartment fuse and relay module | 2J |
| F58kN | Circuit 87M relay | 4J |
| F58k0 | Turbocharger relay | 7K |
| LIN C3 | Drivetrain LIN | 13G |
| LIN C3 | Drivetrain LIN | 16F |
| M43/6 | Low temperature circuit circulation pump 1 | 9J |
| M43/6 | Low temperature circuit circulation pump 1 | 13J |
| N127 | Drivetrain control unit | 13E |
| N3/10 | ME-SFI [ME] control unit | 7E |
| U974 | Not valid for hybrid drive | 6J |
| Y101/1 | Left bypass air switchover valve | 3G |
| Y101/2 | Right bypass air switchover valve | 3G |
| Y73/1 | Low-temperature circuit switchover valve | 18E |
| Y77/1 | Boost pressure control pressure transducer | 7A |
