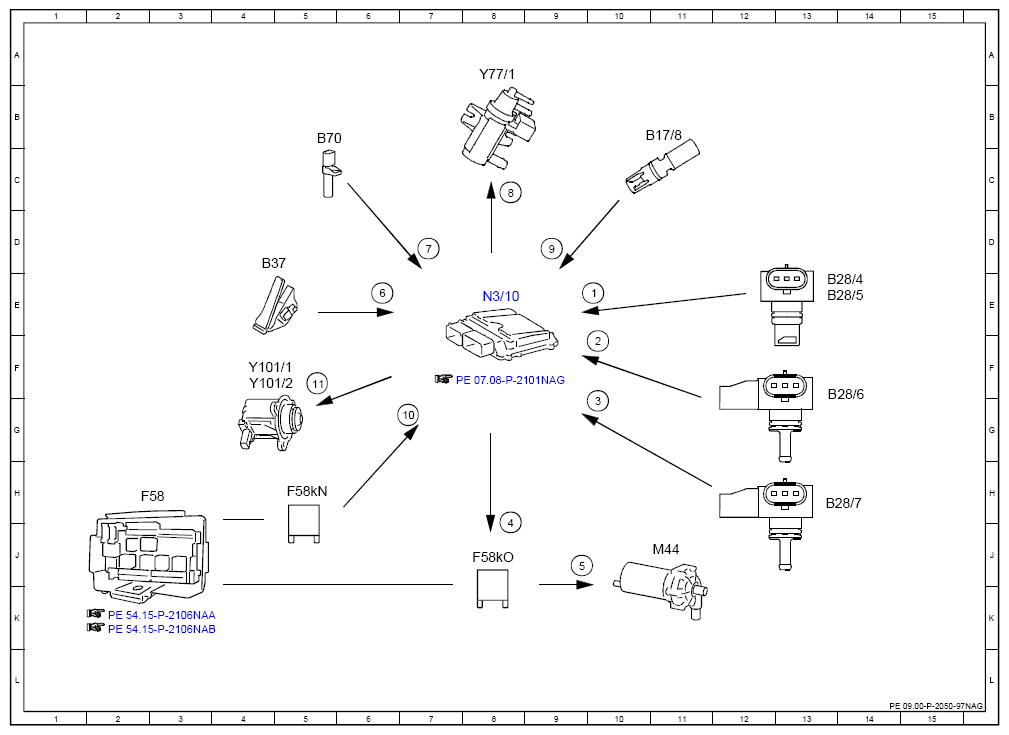

Electrical Function Schematic For Charging - PE09.00-P-2050-97NAG
ENGINE 276.8 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Pressure sensor downstream of air filter, signal | 10E |
| 10 | Circuit 87, status | 7G |
| 11 | Bypass air switchover valve, actuation | 5F |
| 2 | Boost pressure, signal | 10F |
| 3 | Intake manifold pressure, signal | 10G |
| 4 | Turbocharger relay, actuation | 8J |
| 5 | Charge air cooler circulation pump, actuation | 9J |
| 6 | Accelerator pedal sensor, signal | 6E |
| 7 | Engine speed, signal | 7D |
| 8 | Boost pressure control pressure transducer, actuation | 8C |
| 9 | Charge air temperature sensor, signal | 9D |
| B17/8 | Charge air temperature sensor | 11B |
| B28/4 | Pressure sensor downstream of left cylinder bank air filter | 13E |
| B28/5 | Pressure sensor downstream of air filter | 13E |
| B28/6 | Pressure sensor upstream of throttle valve | 13F |
| B28/7 | Pressure sensor downstream of throttle valve | 13H |
| B37 | Accelerator pedal sensor | 4D |
| B70 | Crankshaft Hall sensor | 5B |
| F58 | Engine compartment fuse and relay module | 2H |
| F58kN | Circuit 87M relay | 5H |
| F58k0 | Turbocharger relay | 8J |
| M44 | Charge air cooler circulation pump | 11J |
| N3/10 | ME-SFI [ME] control unit | 8E |
| Y101/1 | Left bypass air switchover valve | 4F |
| Y101/2 | Right bypass air switchover valve | 4F |
| Y77/1 | Boost pressure control pressure transducer | 8A |
