Remove/Install Pressure Transducer For Boost Pressure Aneroid Capsule - AR09.40-P-1003GQ

ENGINES 651 in MODEL 166

	Remove/install
1	Remove engine trim panel
2	Remove firewall cover on the left

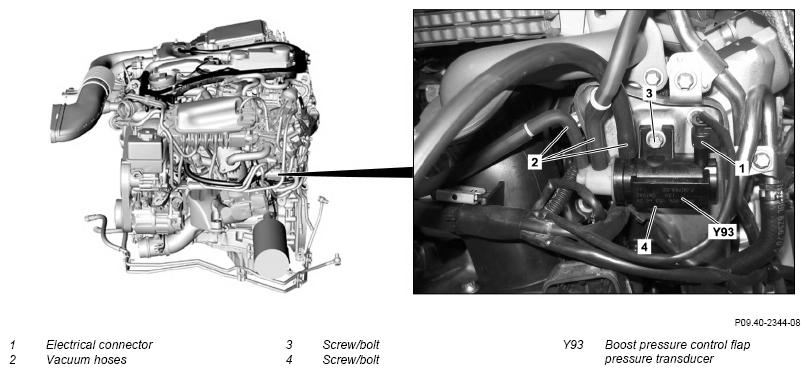

3	Disconnect electrical connector (1) from boost pressure control flap pressure transducer (Y93)
4	Detach vacuum hoses (2)	The vacuum hose marked in color comes on the center connector.
5	Loosen screw/bolt (3)
6	Remove screw/bolt (4) and boost pressure control flap pressure transducer (Y93) upwards
7	Install in the reverse order
