Remove/Install Oil Feed Line For Turbocharger - AR09.40-P-6022CD

ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221

	Remove/install
	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not  carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
1	Remove power electronics with power distributor	Engine 651 in model 212.098/298	AR08.10-P-0011EH
2	Detach ground line of on-board electrical system battery	Engine 651 in model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 Engine 651 in model 166	AR54.10-P-0003GZ
		Engine 651 in model 172	AR54.10-P-0003W
		Engine 651 in model 204	AR54.10-P-0003CW
		Engine 651 in model 207, 212 (except 212.098/298), 218	AR54.10-P-0003EW
		Engine 651 in model 221 Do not connect quiescent current retention unit.	AR54.10-P-0003SX
3	Remove cylinder head cover trim	Engine 651 in model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221
4	Remove air filter housing	Engine 651 in model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221	AR09.10-P-1150CD

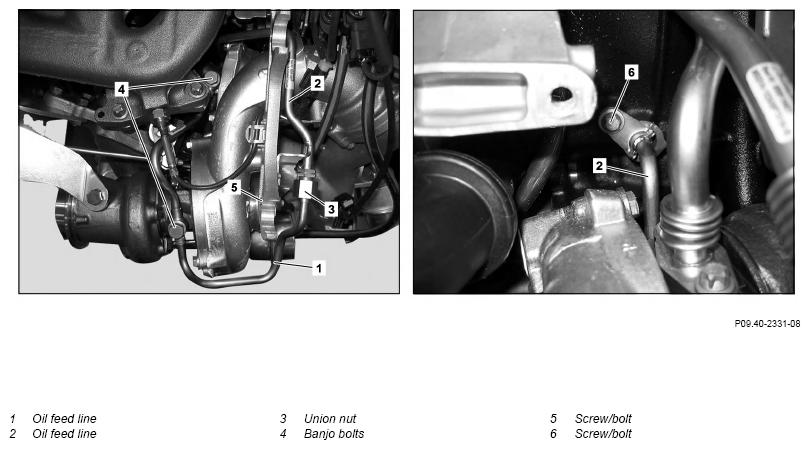

5	Unscrew union nut (3) for oil feed line (1)	Connection for oil lines	*BA09.40-P-1009-01P
6	Remove banjo bolts (4) and oil feed line (1)	Plug openings. Replace seals rings for banjo bolts (4). Banjo bolt, oil line to turbocharger	*BA09.40-P-1005-01P
		Record plug	Figure
7	Remove alternator	Engine 651 in model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 Engine 651 in model 166	AR15.40-P-5032GR
		Engine 651 in model 172, 204, 207, 212 (except 212.098/298), 218, 221 For model 166 lay the alternator to the front and secure against falling down.	AR15.40-P-5032CD
8	Remove screw/bolt (5)	Bolt for oil line bracket	*BA09.40-P-1004-01P
9	Remove screw/bolt (6) and pull out oil feed line (2) from crankcase	Replace sealing ring for oil feed line (2). Bolt, oil line to crankcase	*BA09.40-P-1006-01P
10	Install in the reverse order
11	Check engine oil level, correct if necessary	The engine oil level must lie between "Min" and "Max". Engine damage can occur otherwise.
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Perform an engine test run and check oil feed lines (1, 2) for leaktightness

TURBOCHARGER

Number	Designation		Engine 651
BA09.40-P-1004-01P	Bolt for oil line bracket	Nm	9

TURBOCHARGER

Number	Designation			Engine 651
BA09.40-P-1005-01P	Banjo bolt, oil line to turbocharger	Stage 1	Nm	9
		Stage 2	∠°	90

TURBOCHARGER

Number	Designation		Engine 651
BA09.40-P-1006-01P	Bolt, oil line to crankcase	Nm	9

TURBOCHARGER

Number	Designation		Engine 651
BA09.40-P-1009-01P	Connection for oil lines	Nm	18

Fig 1: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
