Remove/Install Low Temperature Water Circuit Radiator - AR09.41-P-6935MLZ
ENGINES 157 in MODEL 166 with TRANSMISSION 722.9
| Remove/install | |||
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid | Depressurize hydraulic system completely before starting any work on system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| 1 | Remove bumper | MODEL 166.0 | AR88.20-P-2000GQ |
| 2 | Drain coolant at low-temperature cooler | ||

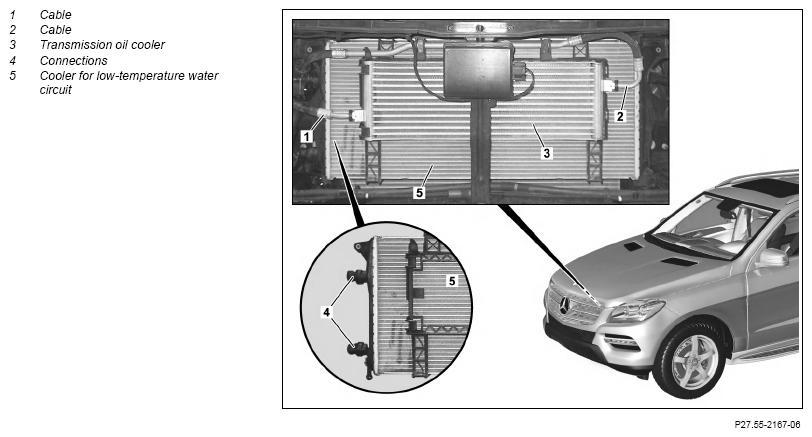

| 3 | Unclip transmission cooler (3) and tilt to the front with attached lines (1, 2) | ||
| 4 | Remove Distronic sensor | With code (233) DISTRONIC PLUS | AR30.30-P-1010GQ |
| 5 | Disconnect coolant hoses at connections (4) | ||
| 6 | Remove cooler for low-temperature water circuit (5) to the front | ||
| 7 | Inspect cooling system for leaks | AR20.00-P-1010GQ | |
| 8 | Install in the reverse order |
