Remove/Install Intake Port Shutoff Actuator Motor - AR09.20-P-1313CD

ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221

	Remove/install

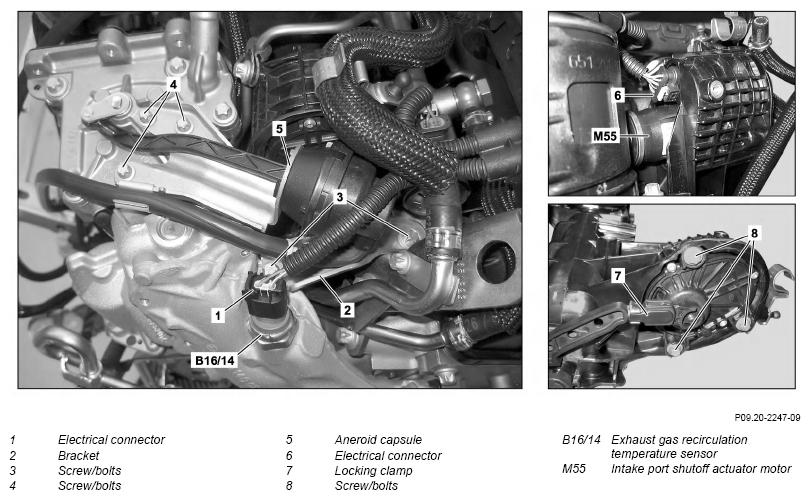

1	Remove cylinder head cover trim
2	Remove section for the partition wall on the left and center	Model 166
3	Disconnect electrical connector (6)
4	Disconnect electrical connector (1)
5	Undo screw/bolts (3) and remove bracket (2)		*BA09.41-P-1008-01N
6	Remove screw/bolts (4) and swivel aneroid capsule (5) to one side	At the same time ensure that the control rod does not break off.	*BA14.20-P-1020-01K
7	Unlock locking clamp (7) and pull out	Swivel locking clamp (7) upwards to unlock it.
8	Remove screw/bolts (8) and intake port shutoff actuator motor (M55)		*BA09.41-P-1009-01N
9	Install in the reverse order

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 651
BA09.41-P-1008-01N	Screw/bolt, charge air manifold to charge air manifold bracket	Nm	9
BA09.41-P-1009-01N	Screw/bolt, intake port shutoff actuator motor to charge air distribution line	Nm	9

EXHAUST GAS RECIRCULATION

Number	Designation			Engine 651
BA14.20-P-1020-01K	Attachment of screw/bolts, bypass valve vacuum unit holder to bypass valve	M6	Nm	12
