Remove/Install Engine Charge Air Channel At Turbocharger - AR09.41-P-8622OGR

ENGINE 642 in MODEL 166, 292

	Remove/install
1	Remove engine charge air duct upstream of charge air cooler		AR09.41-P-8623OGR

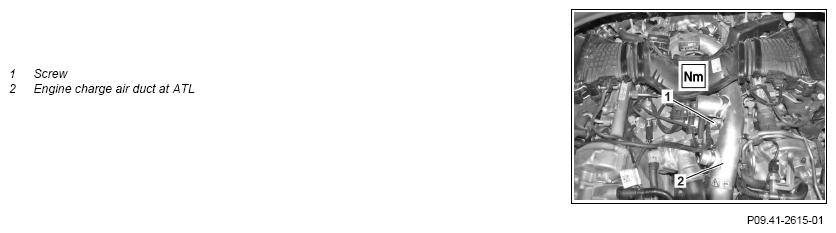

2	Remove screw/bolt (1)	Bolt, engine charge air duct for turbocharger to charge air distributor	*BA09.41-P-1001-01J
3	Remove engine charge air channel at turbocharger (2) towards the front	Check sealing rings for damage and replace if necessary.
4	Install in the reverse order

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 642
BA09.41-P-1001-01J	Bolt, engine charge air duct for turbocharger to charge air distributor	Nm	12
