Remove/Install Charge Air Manifold - AR09.41-P-1310CD
ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221
MODIFICATION NOTES
| 02.12.2016 | Screw, water drain on cylinder head | BA20.10-P-1005-01X |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove cylinder head cover trim | ||
| 2 | Detach cover for upper belt drive to the front and remove upwards | Except MODEL 204 | |
| 3 | Drain coolant at radiator | MODEL 166 | AR20.00-P-1142GQ |
| MODEL 172, 204, 207 | AR20.00-P-1142CW | ||
| MODEL 212 (except 212.098/298), 218, 221 | AR20.00-P-1142OMA | ||
| MODEL 212.098/298 Do not pressure-test engine cooling system until engine has reached operating temperature. Leaks can occur on the cylinder head gasket otherwise. |
AR20.00-P-1142EH | ||
| 4 | Remove fuel filter | ||
| MODEL 204 | AP47.20-P-0780CWD | ||
| MODEL 166, 172, 207, 212, 218 | AP47.20-P-0780EWD | ||
| MODEL 221 Lay fuel filter with attached lines to one side. |
AP47.20-P-0780SXI | ||
| 5 | Remove exhaust gas recirculation valve | MODEL 166, 172 | AR14.20-P-7662GQ |
| MODEL 204, 207, 212, 218, 221 | AR14.20-P-7662CD | ||
| 6 | Remove screw/bolt (12) and place fuel lines (13) to one side | ||
| 7 | Unfasten engine wiring harness and lift upwards | MODEL 166 | AR07.03-P-1010CD |
| 8 | Remove coolant thermostat | Except MODEL 204 Model 166, 172, 207, 212 (except 212.098/298), 218, 221 |
AR20.10-P-2460CD |
| MODEL 212.098/298 |
AR20.10-P-2460EH | ||
| 9.1 | Remove coolant hose (7) a water outlet (8) | MODEL 204 | |
| 9.2 | Disconnect coolant hose (7) on water outlet (8) | MODEL 166, 172, 207, 212, 218, 221 | |

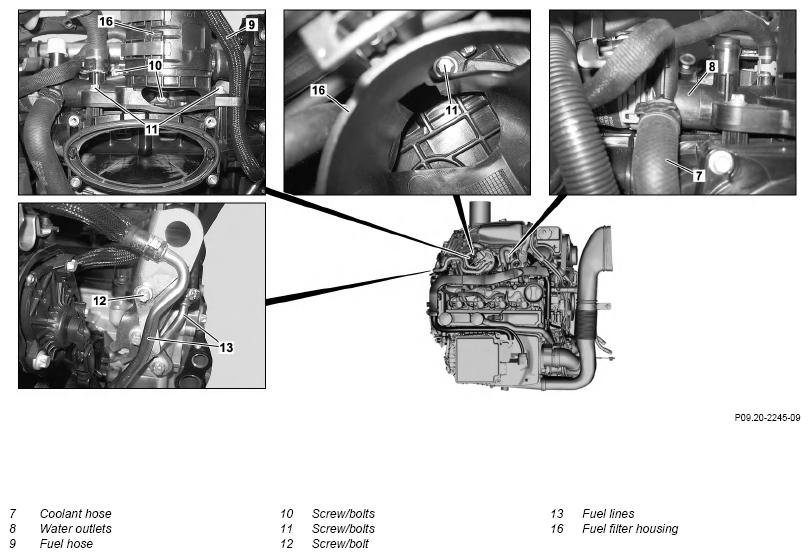

| 10 | Unhook fuel hose (9), remove screw/bolts (10, 11) and remove fuel filter housing (16) upwards | *BA20.10-P-1005-01X | |
| *BA20.10-P-1006-01X | |||
| 11 | Remove screw/bolts (2, 3) on high-pressure line (1) bracket | ||

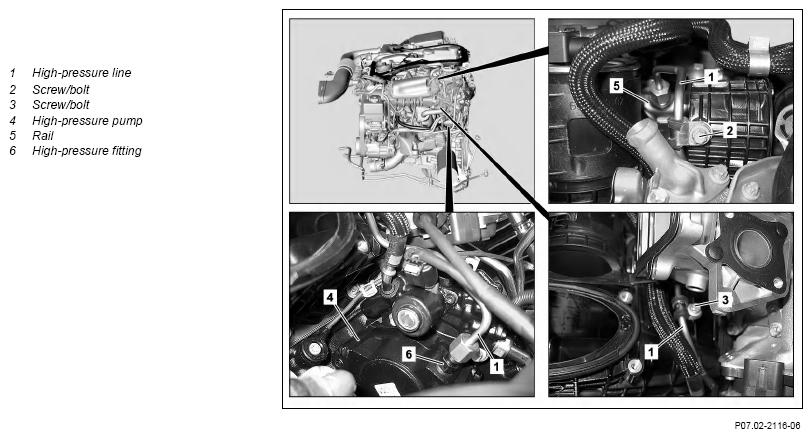

| 12 | Remove high-pressure line (1) from high-pressure pump (4) and rail (5) | AR07.16-P-1080CD | |

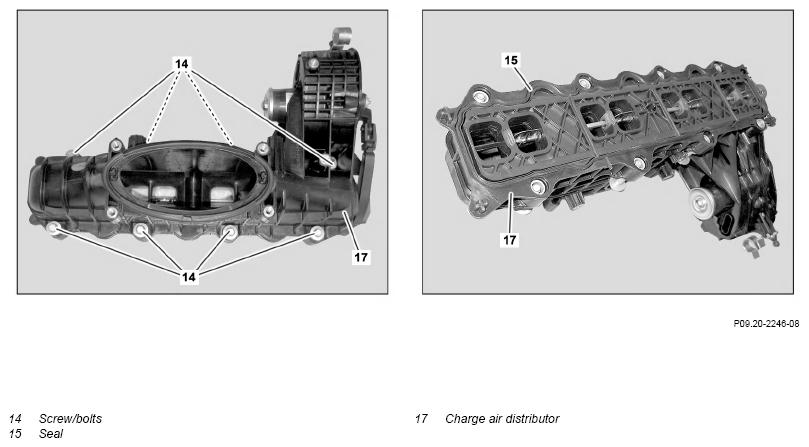

| 13 | Remove screw/bolts (14) and take out charge air distributor (17) | *BA09.41-P-1001-01N | |
| 14 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Check fuel system for leaks with engine running |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 651 | ||
|---|---|---|---|---|
| BA09.41-P-1001-01N | Bolt, charge air distribution line to cylinder head | Stage 1 | Nm | 15 |
| Stage 2 | ∠° | 60 | ||
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA20.10-P-1005-01X | Bolt, water outlet to cylinder head | Nm | 12 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA20.10-P-1006-01X | Screw/bolt, water outlet to charge air distributor | Nm | 9 |
