Remove/Install Boost Pressure Sensor - AR09.41-P-2006OGR

ENGINE 642 in MODEL 166, 292

Shown on model 166

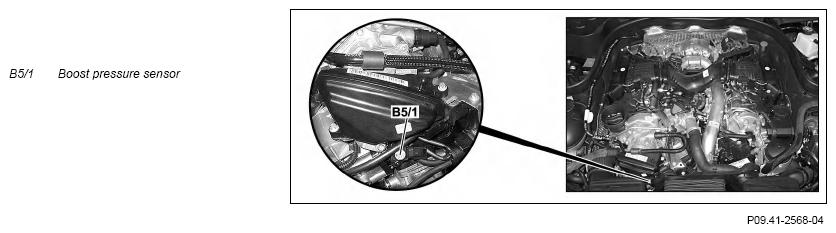

Fig 1: Boost Pressure Sensor Component Location - Engine 642 In Model 166, 292

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove upper engine cover	Ensure correct seating of the engine cover.
2	Remove right engine air intake duct upstream of left air filter
3	Unclip pipework for Active Roll Stabilization on impact plate	Engine 642 in model 166, 292 with code 468 (ACTIVE CURVE SYSTEM) The impact plate is installed in front of the belt drive.
4	Remove impact plate
5	Disconnect electrical connection on boost pressure sensor (B5/1)
6	Remove boost pressure sensor (B5/1)	Replace seal.
7	Install in the reverse order
8	Read out fault memory using the diagnostic system and clear if necessary	When replacing the boost pressure sensor (B5/1)	AD00.00-P-2000-04A
