Charging, Function - GF09.00-P-2000OLL

ENGINE 651.9 as of 3/1/13 in MODEL 166

up to model year 2016

Function requirements for charging - general

Forced induction, general

The cylinder charging efficiency is improved as a result of forced induction. As a result, the engine torque and power output are boosted. For forced induction, the flow energy of the exhaust gases is used to drive both ATL. Forced induction is performed by two inline ATL of different size which function together in different ways depending on the operating range.

The ATL suctions in fresh air through the air filter on the compactor inlet and feeds it through the compressor outlet into the charge air pipe upstream of the charge air cooler.

The high rotational speed of the compressor impeller and the resultant high volumetric flow rate compacts the air in the charge air pipe. Compaction heats the charge air, which now flows through the charge air pipe to the charge air cooler. This cools off the charge air and feeds it through the charge air pipe to the charge air distributor.

Charging is regulated by the boost pressure control. The boost pressure is regulated by the CDI control unit (N3/9) depending on the following values and associated components:

Function sequence for charging

The function sequence is described in the following steps:

Function sequence for boost pressure control with wide open throttle operation up to 1200 rpm

Up to an engine speed of 1200 rpm in wide open throttle operation, the exhaust flaps (boost pressure control flap and Wastegate) are closed and the entire flow of exhaust flows via the turbine wheel of the high-pressure turbocharger to the turbine wheel of the low-pressure turbocharger and then to the exhaust system.

The largest part of the exhaust gas energy acts on the turbine wheel of the high-pressure turbocharger which thereby generates the main part of the necessary boost pressure.

The remaining exhaust gas energy acts on the turbine wheel of the low pressure ATL which drives the compressor impeller via the supercharger shaft. The low-pressure turbocharger does not therefore act as a hydrodynamic retarder. The wastegate actuated by the boost pressure control pressure transducer and the check valve are closed.

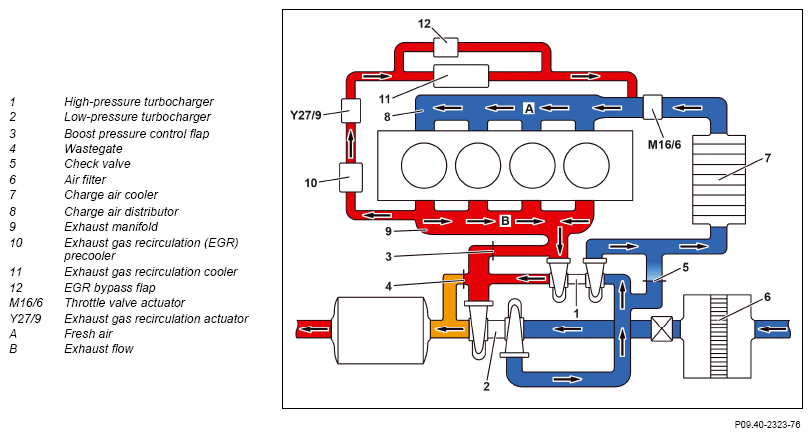

Schematic representation showing wide open throttle operation boost pressure control up to about 1200 rpm

G12081231

Function sequence for boost pressure control with wide open throttle operation as of approx. 1200 rpm to 2800 rpm

The boost pressure control flap actuated by the boost pressure control flap pressure transducer is slowly opened according to prescribed values in the characteristics map (controlled), so that the low-pressure turbocharger is continuously switched-in. The wastegate actuated by the boost pressure control pressure transducer and the check valve continue to be closed.

As of an engine speed of 1200 rpm in wide open throttle operation, the boost pressure control flap is opened depending on the required boost pressure. The larger part of the exhaust flow continues to flow via the turbine wheel of the high-pressure turbocharger to the turbine wheel of the low-pressure turbocharger and then to the exhaust system. The largest part of the generated boost pressure is provided by the high pressure ATL.

Schematic representation of boost pressure control with wide open throttle operation as of 1200 rpm to 2800 rpm

G12081232

Function sequence for boost pressure control with wide open throttle operation as of about 2800 rpm

As of an engine rpm of about 2800 rpm the check valve (opens self regulating) and the wastegate are opened. The charge air generated by the low-pressure turbocharger is mostly led over the air duct housing past the compressor for the high-pressure turbocharger (bypassed) to the charge air cooler. The low-pressure turbocharger thus generates the required boost pressure. As the high pressure turbocharger cannot be completely bypassed, a part of the exhaust flow continues to drive the high-pressure turbine wheel. The boost pressure generated is regulated by the wastegate actuated by the boost pressure control pressure transducer. The CDI control unit uses the boost pressure sensor to monitor the boost pressure actually generated.

The low-pressure turbocharger boost pressure sensor detects the boost pressure downstream of the low-pressure turbocharger. By comparing the boost pressure actually generated with the boost pressure stored in the characteristics map and the boost pressure downstream of the low pressure ATL, it is possible to detect faults at the high pressure and low pressure ATL.

IMPORTANT The compressor bypass is self-regulating based on the pressure differential, whereby the spring-loaded check valve bypasses the charge air up to a condition of higher loads to the high-pressure turbocharger.

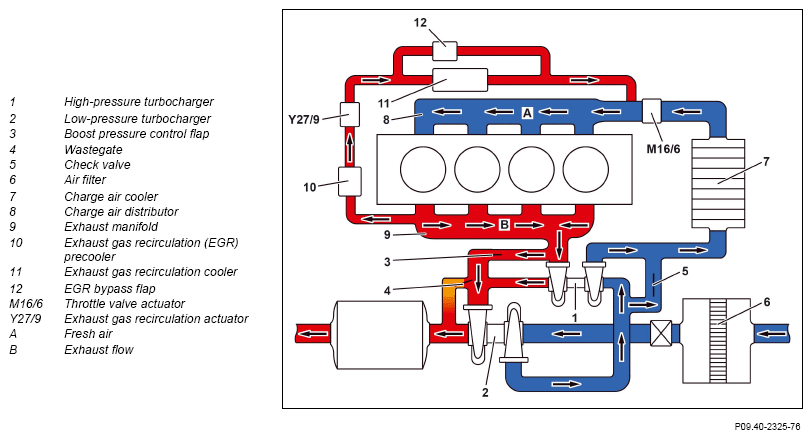

Schematic representation showing wide open throttle operation boost pressure control as of about 2800 rpm

G12081233

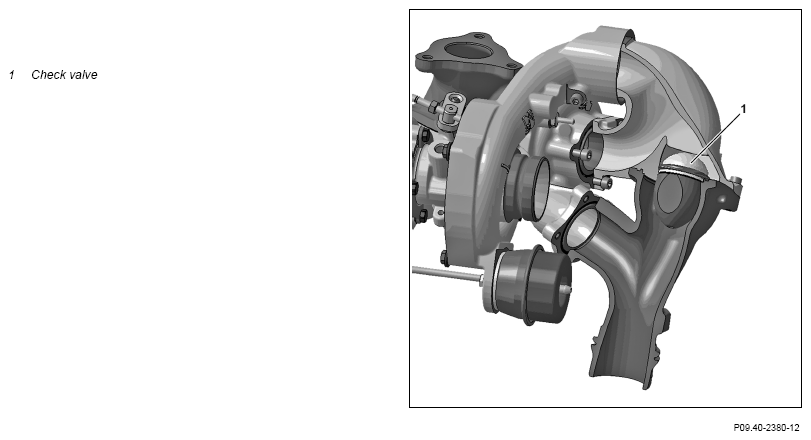

Shown: ATL with closed compressor bypass

G12081234

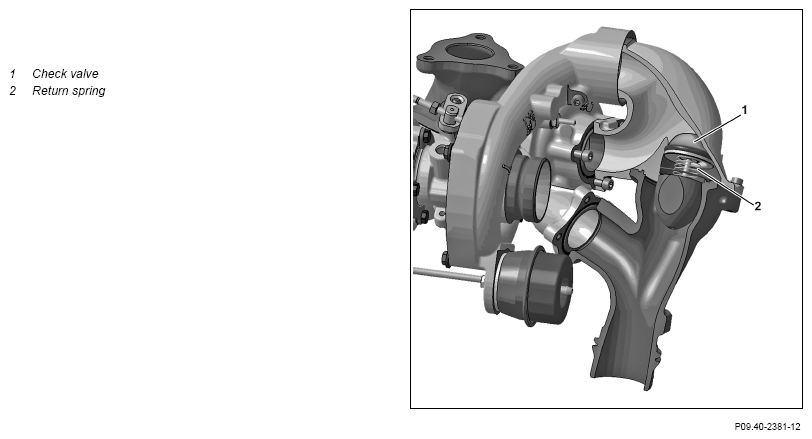

Shown: ATL with opened compressor bypass

G12081235
