Charging, Basic Function - GF09.00-P-9900A

ENGINE ALL (CAR)

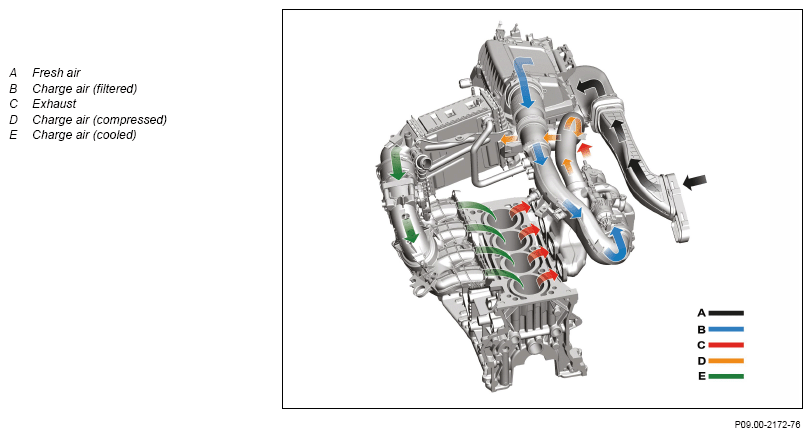

Shown: Charging of engine 260

Overview

This document contains information on:

• General
• Function

General

Charging compresses the fresh air sucked in and increases the cylinder charge level. The engine output increases.

Function

The exhaust gases reach the turbine wheel via the intake on the exhaust gas turbocharger's turbine wheel housing.

A narrowing causes the thermal energy to convert into kinetic energy and the turbine wheel to start turning.

The turbine wheel sits on the same shaft as the compressor wheel. The rotation of the turbine wheel causes the compressor impeller to turn and this then sucks in fresh air.

The fresh air sucked in is compressed in the compressor wheel housing and reaches the engine through an outlet via the charge air cooler.

	Additional basic functions
	Boost pressure control, basic function	Engine all (CAR)	GF09.40-P-1000A
	Overrun mode bypass air, basic function	Engine 260, 282	GF09.40-P-1002A
	Components
	Exhaust gas turbocharger, detailed information	Engine 608	GF09.40-P-2500A
