Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2127-97NAB

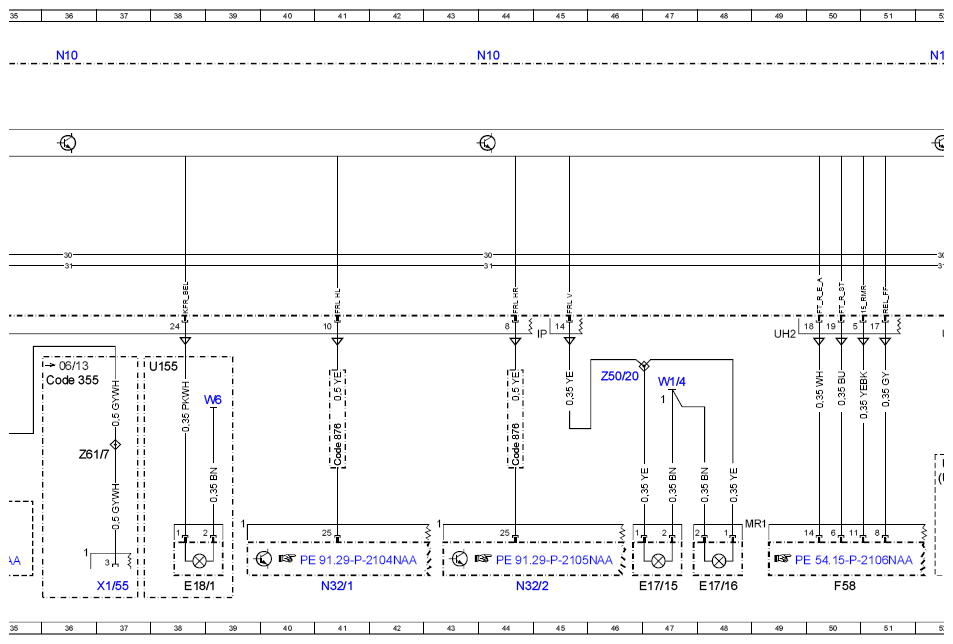

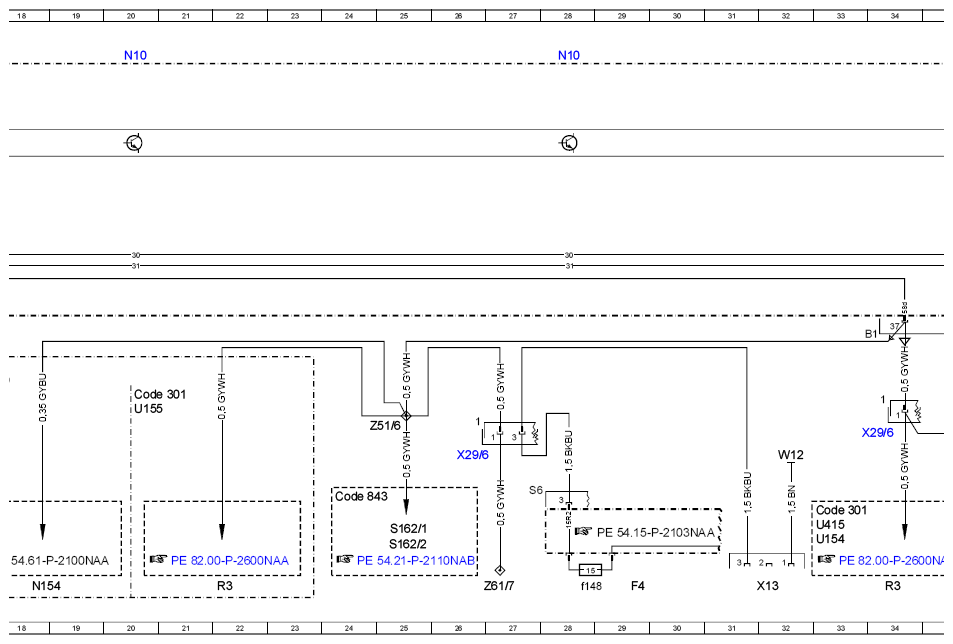

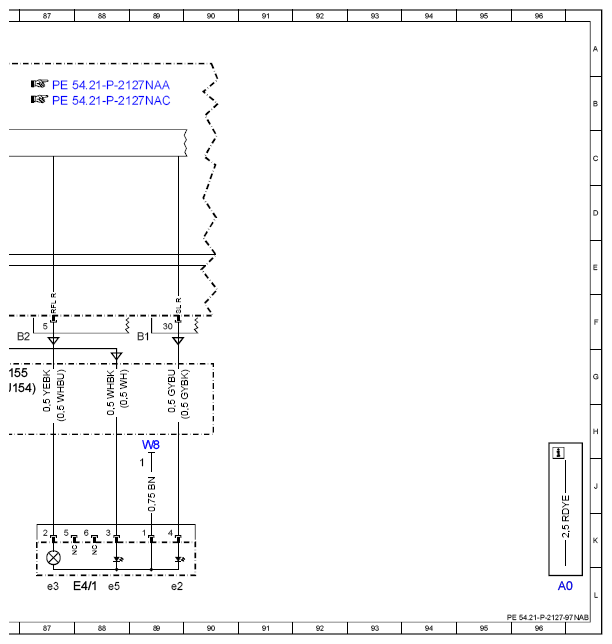

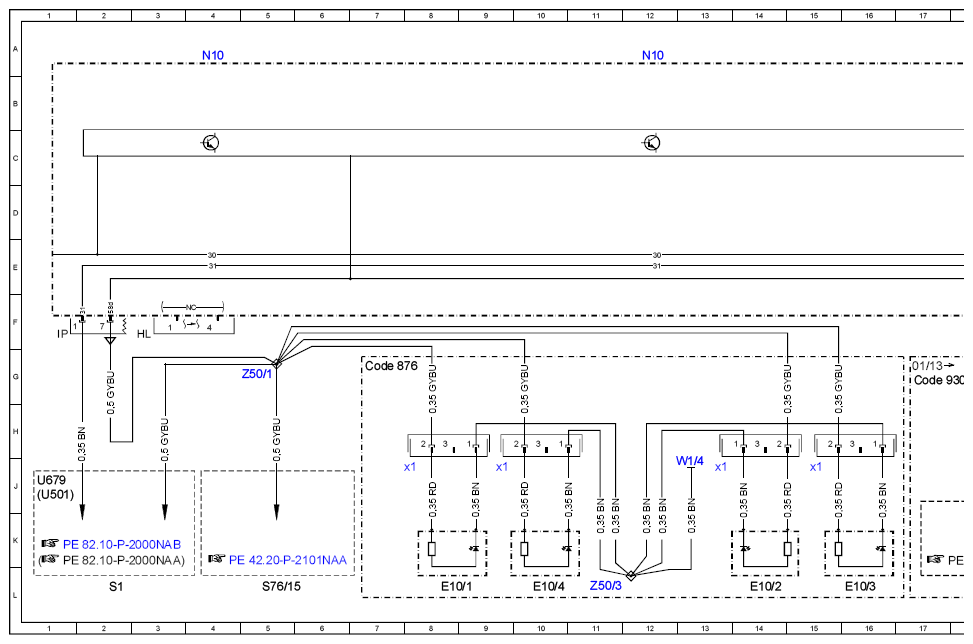

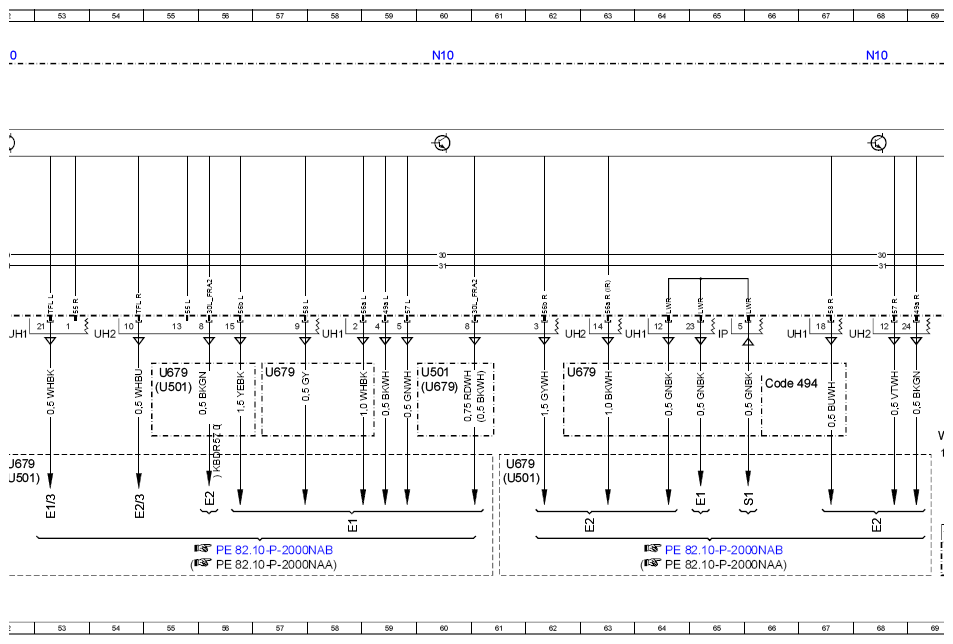

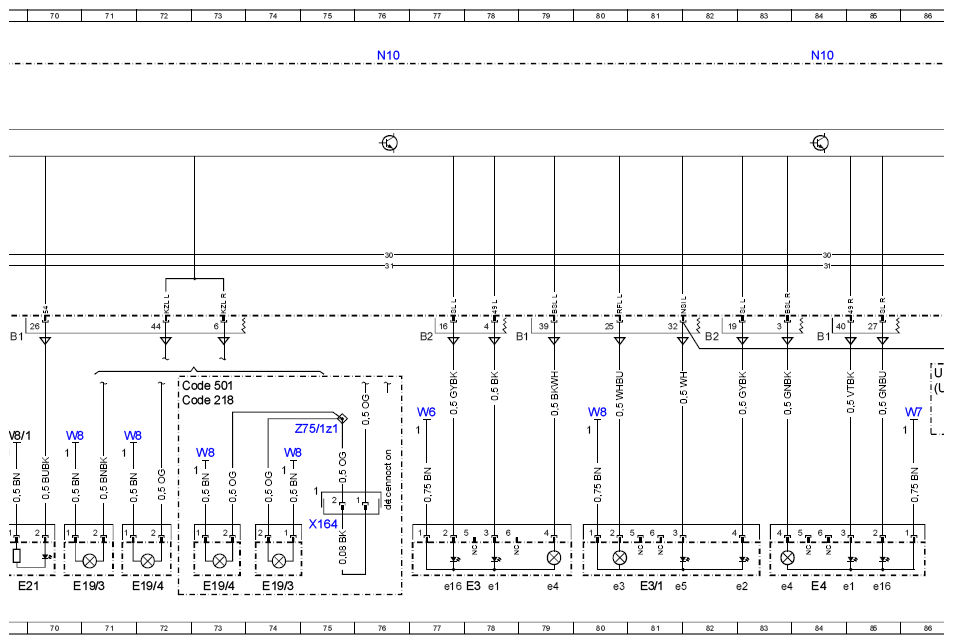

MODEL 166 up to model year 2016 Control unit N10, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |
| Code 218 | Backup camera | 72H |
| Code 301 | Ashtray in place of stowage compartment with flap and power outlet | 20G |
| Code 301 | Ashtray in place of stowage compartment with flap and power outlet | 33K |
| Code 355 | Preinstallation for navigation retrofit | 36G |
| Code 494 | USA version | 66G |
| Code 501 | 360 degree camera | 72G |
| Code 843 | Electric EASY-ENTRY | 24J |
| Code 876 | Interior lights package | 7G |
| Code 876 | Interior lights package | 44J |
| Code 876 | Interior lights package | 41J |
| Code 930 | Tachograph preinstallation | 17G |
| E1 | Left front lamp unit | 58K |
| E1 | Left front lamp unit | 65J |
| E1/3 | Left daytime running lamps headlamp | 53J |
| E10/1 | Left center air outlet symbol illumination | 8L |
| E10/1x1 | Center vent symbol illumination electrical connector | 8J |
| E10/2 | Left front side air outlet symbol illumination | 14L |
| E10/2x1 | Left front side vent symbol illumination electrical connector | 13J |
| E10/3 | Right front side air outlet symbol illumination | 16L |
| E10/3x1 | Right front side vent symbol illumination electrical connector | 15J |
| E10/4 | Right center air outlet symbol illumination | 10L |
| E10/4x1 | Right center vent symbol illumination electrical connector | 9J |
| E17/15 | Right front footwell lamp | 47L |
| E17/16 | Left front footwell lamp | 48L |
| E18/1 | Load compartment lamp | 38L |
| E19/3 | Left liftgate license plate lamp | 74L |
| E19/3 | Left liftgate license plate lamp | 70L |
| E19/4 | Right liftgate license plate lamp | 72L |
| E19/4 | Right liftgate license plate lamp | 73L |
| E2 | Right front lamp unit | 63K |
| E2 | Right front lamp unit | 68K |
| E2 | Right front lamp unit | 56J |
| E2/3 | Right daytime running lamps headlamp | 54J |
| E21 | Center stop lamp | 69L |
| E3 | Left rear lamp unit | 78L |
| E3/1 | Inner left rear lamp unit | 81L |
| E3/1e2 | Left inside taillight | 83L |
| E3/1e3 | Left backup lamp | 80L |
| E3/1e5 | Left rear fog lamp | 81L |
| E3e1 | Left rear turn signal lamp | 78L |
| E3e16 | Outer left taillight | 77L |
| E3e4 | Left stop lamp | 79L |
| E4 | Right rear lamp unit | 84L |
| E4/1 | Inner right rear lamp unit | 88L |
| E4/1e2 | Right inside taillight | 89L |
| E4/1e3 | Right backup lamp | 87L |
| E4/1e5 | Right rear fog lamp | 88L |
| E4e1 | Right rear turn signal lamp | 84L |
| E4e16 | Outer right taillight | 85L |
| E4e4 | Right stop lamp | 83L |
| F4 | Rear fuse box | 29L |
| F4f148 | Fuse 148 | 28L |
| F58 | Engine compartment fuse and relay module | 50L |
| N10 | SAM control unit | 4A |
| N10 | SAM control unit | 12A |
| N10 | SAM control unit | 20A |
| N10 | SAM control unit | 28A |
| N10 | SAM control unit | 36A |
| N10 | SAM control unit | 44A |
| N10 | SAM control unit | 52A |
| N10 | SAM control unit | 60A |
| N10 | SAM control unit | 68A |
| N10 | SAM control unit | 76A |
| N10 | SAM control unit | 84A |
| N154 | Digital tachograph control unit | 18L |
| N32/1 | Driver seat control unit | 41L |
| N32/2 | Front passenger seat control unit | 44L |
| R3 | Front cigarette lighter with ashtray illumination | 22L |
| R3 | Front cigarette lighter with ashtray illumination | 34L |
| S1 | Exterior lights switch | 2L |
| S1 | Exterior lights switch | 66J |
| S162/1 | Left 2nd seat row folding backrest switch | 25K |
| S162/2 | Right 2nd seat row folding backrest switch | 25K |
| S76/15 | Electric parking brake switch | 5L |
| U154 | Valid for 166.0 | 33K |
| U154 | Valid for 166.0 | 86G |
| U155 | Valid for 166.8 | 20H |
| U155 | Valid for 166.8 | 37G |
| U155 | Valid for 166.8 | 86G |
| U415 | Not valid for code (930) Tachograph preinstallation | 33K |
| U501 | Valid for xenon headlamps | 1J |
| U501 | Valid for xenon headlamps | 52J |
| U501 | Valid for xenon headlamps | 55G |
| U501 | Valid for xenon headlamps | 61J |
| U501 | Valid for xenon headlamps | 60G |
| U679 | Valid for version without xenon headlamps | 1J |
| U679 | Valid for version without xenon headlamps | 52J |
| U679 | Valid for version without xenon headlamps | 55G |
| U679 | Valid for version without xenon headlamps | 61J |
| U679 | Valid for version without xenon headlamps | 62G |
| U679 | Valid for version without xenon headlamps | 57G |
| U679 | Valid for version without xenon headlamps | 60G |
| W1/4 | Cockpit ground point | 13J |
| W1/4 | Cockpit ground point | 47G |
| W12 | Ground point (center console) | 32J |
| W6 | Inner left D-pillar ground point | 39H |
| W6 | Inner left D-pillar ground point | 77H |
| W7 | Right rear center section ground point | 86H |
| W8 | Liftgate ground point | 73H |
| W8 | Liftgate ground point | 74H |
| W8 | Liftgate ground point | 71H |
| W8 | Liftgate ground point | 70H |
| W8 | Liftgate ground point | 80H |
| W8 | Liftgate ground point | 89H |
| W8/1 | Left tailgate ground point | 69H |
| X1/55 | External navigation electrical connector | 37L |
| X13 | Cigarette lighter electrical connector | 32L |
| X164 | Resistance line electrical connector | 75K |
| X29/6 | Center console electrical connector | 26J |
| X29/6 | Center console electrical connector | 34H |
| Z50/1 | Circuit 58d instrument panel connector sleeve | 5G |
| Z50/20 | Cockpit connector sleeve, footwell lighting | 46G |
| Z50/3 | Circuit 31 instrument panel connector sleeve | 11L |
| Z51/6 | Circuit 58d vehicle interior connector sleeve | 25H |
| Z61/7 | Wiring harness connector sleeve for center console, terminal 58d | 27L |
| Z61/7 | Wiring harness connector sleeve for center console, terminal 58d | 36J |
| Z75/1z1 | License plate lamp connector sleeve | 75H |
