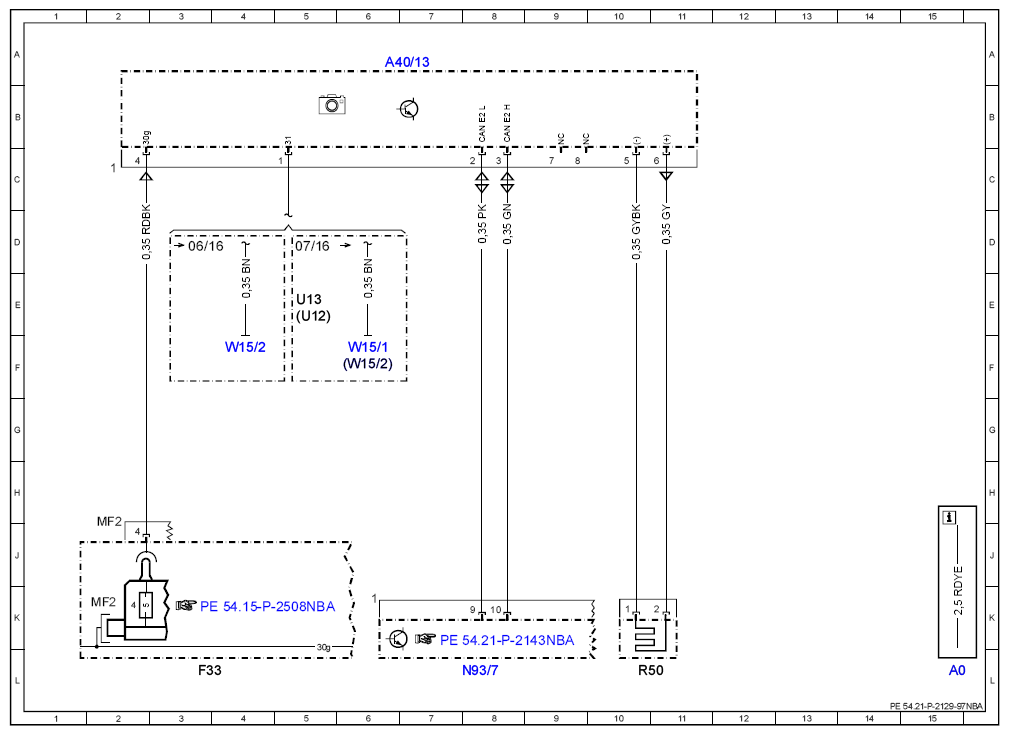

Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97NBA
MODEL 166 as of model year 2016 with CODE 23P (Driving Assistance package Plus) Multifunction camera A40/13
MODEL 292 with CODE 23P (Driving Assistance package Plus) Multifunction camera A40/13
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A40/13 | Stereo multifunction camera | 6A |
| F33 | Battery compartment prefuse box | 3L |
| F33MF2 | Multiple fuse 2 | 2K |
| N93/7 | Chassis gateway control unit | 8L |
| R50 | Auxiliary heater heating element | 10L |
| U12 | Valid for left-hand drive vehicles | 5E |
| U13 | Valid for right-hand drive vehicles | 5E |
| W15/1 | Right footwell ground point | 6F |
| W15/2 | Left footwell ground point | 6F |
| W15/2 | Left footwell ground point | 4F |
