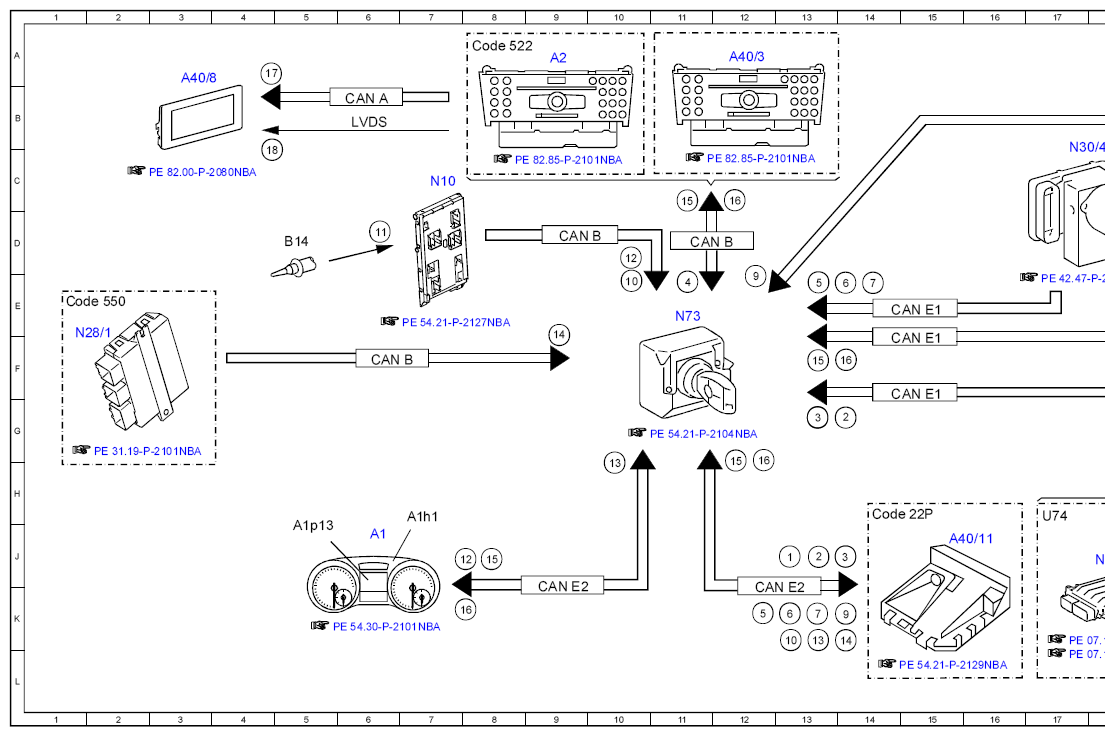

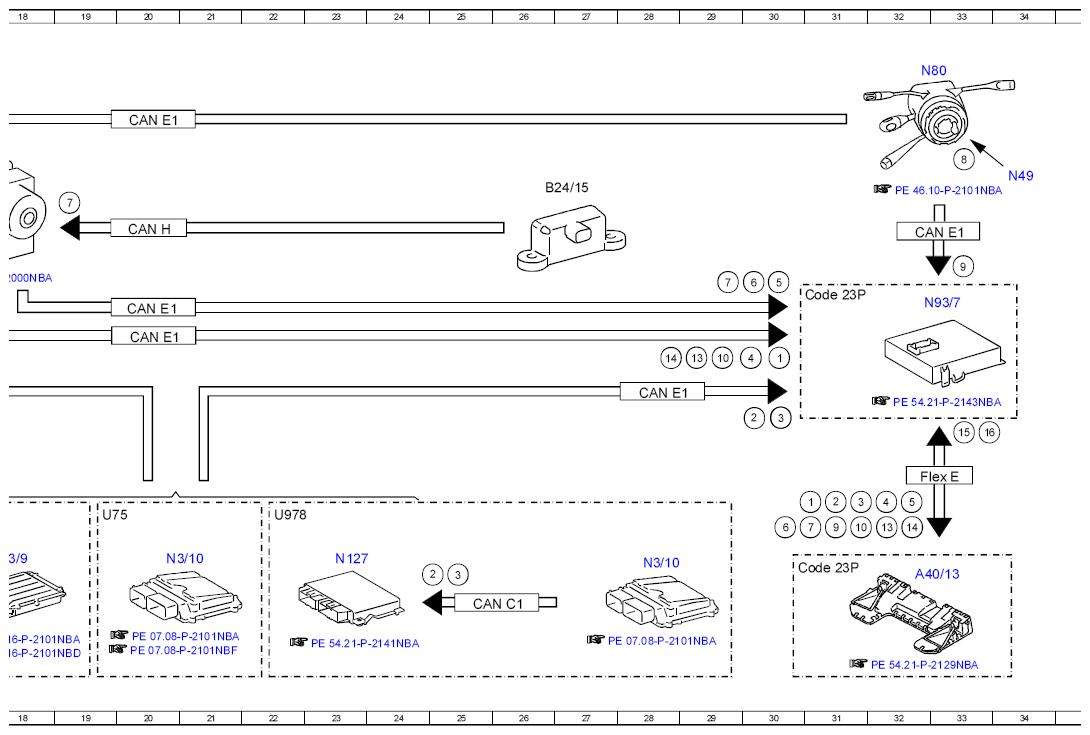

Electrical Function Schematic For Traffic Sign Assist - PE54.30-P-2066-97NBA
MODEL 166 as of model year 2016 with CODE 513 (Speed Limit Assist)
MODEL 292 with CODE 513 (Speed Limit Assist)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 30F |
| 1 | Circuit 15, status | 31H |
| 1 | Circuit 15, status | 13J |
| 10 | Wiper status, signal | 10E |
| 10 | Wiper status, signal | 29F |
| 10 | Wiper status, signal | 13K |
| 10 | Wiper status, signal | 31J |
| 11 | Outside temperature sensor, signal | 6D |
| 12 | Outside temperature, signal | 8J |
| 12 | Outside temperature, signal | 10D |
| 13 | Displayed outside temperature, signal | 29F |
| 13 | Displayed outside temperature, signal | 10H |
| 13 | Displayed outside temperature, signal | 32J |
| 13 | Displayed outside temperature, signal | 13K |
| 14 | Trailer recognition, status | 28F |
| 14 | Trailer recognition, status | 9F |
| 14 | Trailer recognition, status | 32J |
| 14 | Trailer recognition, status | 14K |
| 15 | Road sign display, request | 11C |
| 15 | Road sign display, request | 13F |
| 15 | Road sign display, request | 8J |
| 15 | Road sign display, request | 12G |
| 15 | Road sign display, request | 33G |
| 16 | Warning and system messages, request | 12C |
| 16 | Warning and system messages, request | 14F |
| 16 | Warning and system messages, request | 12G |
| 16 | Warning and system messages, request | 7K |
| 16 | Warning and system messages, request | 33G |
| 17 | Audio/COMAND display, actuation | 4A |
| 18 | Low voltage differential signal video signal data transfer, signal | 4C |
| 2 | Engine running, signal | 14G |
| 2 | Engine running, signal | 30G |
| 2 | Engine running, signal | 31H |
| 2 | Engine running, signal | 13J |
| 2 | Engine running, signal | 25J |
| 3 | Drivetrain operational, signal | 13G |
| 3 | Drivetrain operational, signal | 30G |
| 3 | Drivetrain operational, signal | 31H |
| 3 | Drivetrain operational, signal | 14J |
| 3 | Drivetrain operational, signal | 25J |
| 4 | Navigation data, signal | 11E |
| 4 | Navigation data, signal | 30F |
| 4 | Navigation data, signal | 32H |
| 5 | Wheel speed, signal | 13E |
| 5 | Wheel speed, signal | 30E |
| 5 | Wheel speed, signal | 32H |
| 5 | Wheel speed, signal | 12K |
| 6 | Wheel rotation direction, signal | 14E |
| 6 | Wheel rotation direction, signal | 30E |
| 6 | Wheel rotation direction, signal | 30J |
| 6 | Wheel rotation direction, signal | 13K |
| 7 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 19C |
| 7 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 14E |
| 7 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 29E |
| 7 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 31J |
| 7 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 13K |
| 8 | Steering wheel angle sensor, signal | 33C |
| 9 | Steering wheel angle, signal | 12E |
| 9 | Steering wheel angle, signal | 33D |
| 9 | Steering wheel angle, signal | 31J |
| 9 | Steering wheel angle, signal | 14K |
| A1 | Instrument cluster | 6J |
| A1h1 | Warning buzzer | 7H |
| A1p13 | Multifunction display | 5J |
| A2 | Radio | 9A |
| A40/11 | Multifunction camera | 15J |
| A40/13 | Stereo multifunction camera | 32J |
| A40/3 | COMAND control unit | 12A |
| A40/8 | Audio/COMAND display | 3A |
| B14 | Outside temperature sensor | 5D |
| B24/15 | Yaw rate sensor for lateral and longitudinal acceleration | 26C |
| CAN A | Telematics CAN | 6B |
| CAN B | Interior CAN | 11D |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 9D |
| CAN C1 | Engine CAN | 25K |
| CAN E1 | Chassis CAN 1 | 15F |
| CAN E1 | Chassis CAN 1 | 28F |
| CAN E1 | Chassis CAN 1 | 20E |
| CAN E1 | Chassis CAN 1 | 32D |
| CAN E1 | Chassis CAN 1 | 15F |
| CAN E1 | Chassis CAN 1 | 20F |
| CAN E1 | Chassis CAN 1 | 15E |
| CAN E1 | Chassis CAN 1 | 20B |
| CAN E2 | Chassis CAN 2 | 9K |
| CAN E2 | Chassis CAN 2 | 12K |
| CAN H | Vehicle dynamics CAN | 20D |
| Code 22P | Track package | 14H |
| Code 23P | Driver assistance package | 30J |
| Code 23P | Driver assistance package | 30E |
| Code 522 | Audio 20 radio | 8A |
| Code 550 | Trailer hitch | 1E |
| Flex E | Chassis FlexRay | 32H |
| LVDS | Low voltage differential signal | 6B |
| N10 | SAM control unit | 7C |
| N127 | Drivetrain control unit | 23J |
| N28/1 | Trailer recognition control unit | 1F |
| N3/10 | ME-SFI [ME] control unit | 20J |
| N3/10 | ME-SFI [ME] control unit | 28J |
| N3/9 | CDI control unit | 18J |
| N30/4 | Electronic Stability Program control unit | 17C |
| N49 | Steering wheel angle sensor | 34C |
| N73 | Electronic ignition switch control unit | 11E |
| N80 | Steering column module control unit | 32A |
| N93/7 | Chassis gateway control unit | 33E |
| U74 | Valid for diesel engines | 17H |
| U75 | Valid for gasoline engines | 19H |
| U978 | Valid for hybrid drive | 22H |
