Remove/Install Radar Sensors Control Unit - AR54.65-P-0040GQ

MODEL 166, 292 with CODE 233 (DISTRONIC PLUS)

MODEL 166, 292 with CODE 237 (Active Blind Spot Assist)

MODEL 166, 292 with CODE 238 (Active lane keeping Assist)

Shown on MODEL 292

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform initial startup of radar sensors control unit (N62/1)	When replacing radar sensors control unit (N62/1).
			AD00.00-P-2000-04A
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3	Remove left-hand panel under instrument panel		AR68.10-P-1500GQ

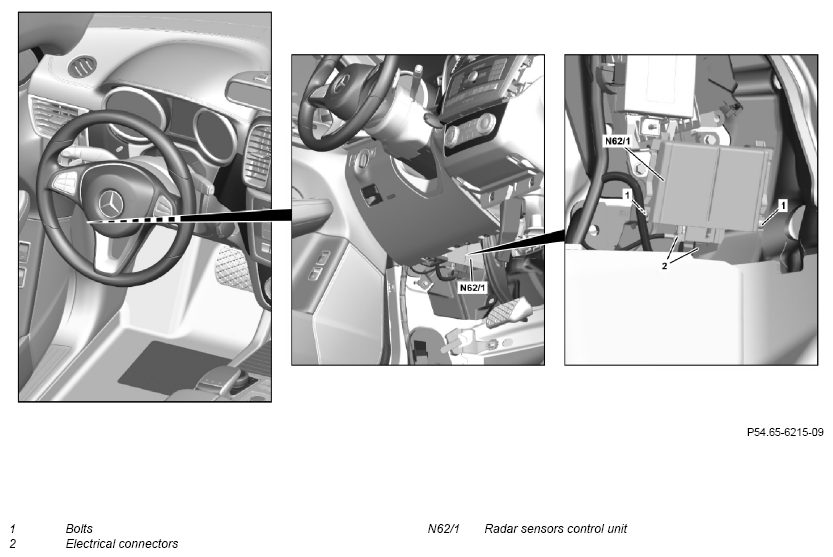

4	Unscrew bolts (1)
5	Release and disconnect electrical connectors (2)
6	Remove radar sensors control unit (N62/1)
7	Install in the reverse order
