Remove/Install Fanfare Horns - AR54.35-P-1555GQ

MODEL 166

MODEL 292

	Remove/install
1	Remove right front section of fender liner		AR88.10-P-1310GQ

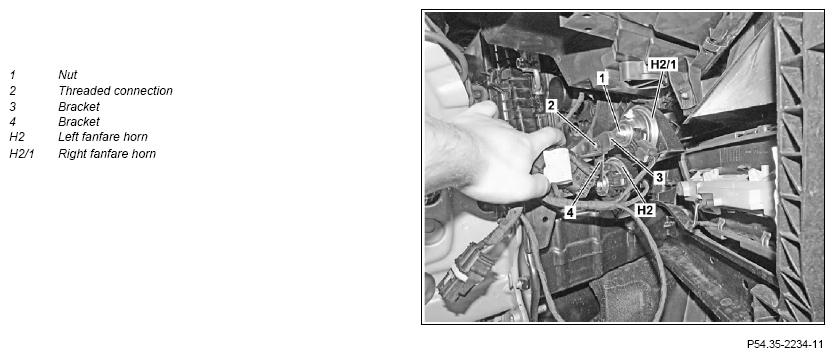

2	Release and disconnect electrical connections at horns (H2 and H2/1)
3	Unscrew nut (1) and remove horn (H21) from bracket (3)	Nut/bolt, horn to bracket	*BA54.35-P-1004-01E
4	Remove threaded connection (2) and remove brackets (3, 4) along with horn (H2)	The brackets (3 and 4) are included in the scope of supply for the horns (H2 or H2/1). Nut/bolt, horn bracket to carrier	*BA54.35-P-1005-01E
5	Install in the reverse order

SIGNALING SYSTEM

Number	Designation		Model 166	Model 292
BA54.35-P-1004-01E	Nut/bolt, horn to bracket	Nm	6	6

SIGNALING SYSTEM

Number	Designation		Model 166	Model 292
BA54.35-P-1005-01E	Nut/bolt, horn bracket to carrier	Nm	6	6
