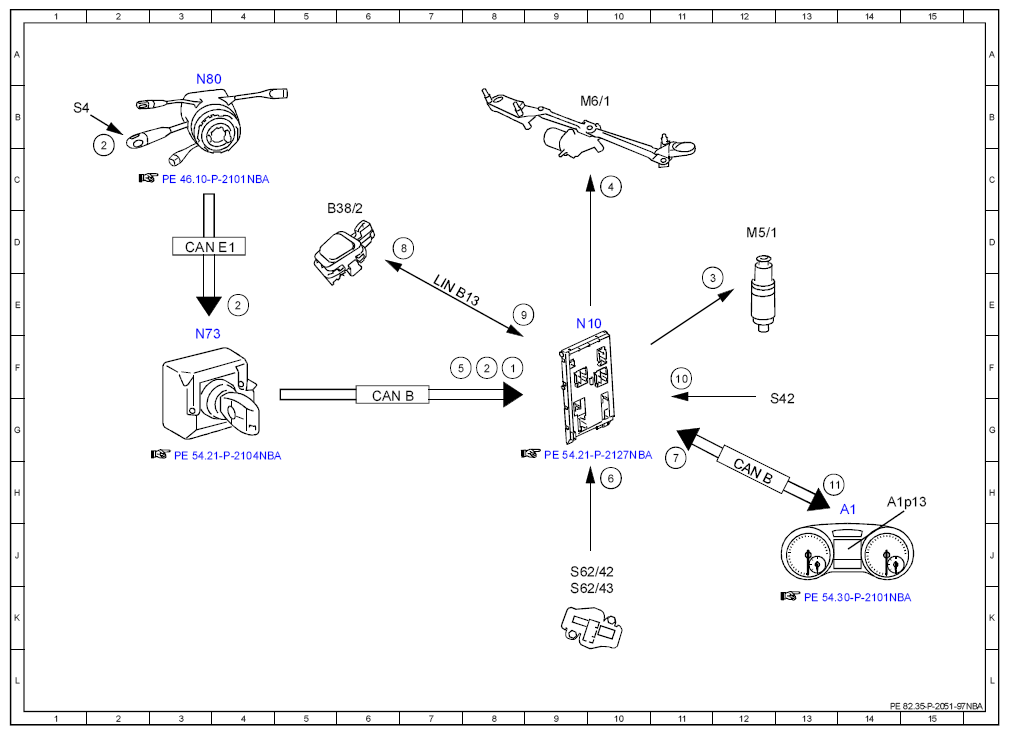

Electrical Function Schematic For Windshield Washer - PE82.35-P-2051-97NBA
MODEL 166 as of model year 2016
MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8F |
| 10 | Washer fluid level switch, signal | 11F |
| 11 | Instrument cluster message, request | 13H |
| 2 | Combination switch, status | 4E |
| 2 | Combination switch, status | 2B |
| 2 | Combination switch, status | 8F |
| 3 | Windshield washer system pump, actuation | 12E |
| 4 | Wiper motor, actuation | 10C |
| 5 | Circuit 50, status | 7F |
| 6 | Engine hood contact switch, status | 10H |
| 7 | Vehicle speed, signal | 11G |
| 8 | Re-wipe, status | 7D |
| 9 | Rain/light sensor, status | 9E |
| A1 | Instrument cluster | 14H |
| A1p13 | Multifunction display | 14H |
| B38/2 | Rain/light sensor with additional functions | 5D |
| CAN B | Interior CAN | 6G |
| CAN B | Interior CAN | 12H |
| CAN E1 | Chassis CAN 1 | 3D |
| LIN B13 | Windshield washer system pump | 7E |
| M5/1 | Roof LIN | 12D |
| M6/1 | Wiper motor | 9B |
| N10 | SAM control unit | 3F |
| N73 | Electronic ignition switch control unit | 3A |
| N80 | Steering column module control unit | 1B |
| S4 | Combination switch | 13G |
| S42 | Windshield washer system washer fluid level switch | 9J |
| S62/42 | Right engine hood contact switch | 9K |
| S62/43 | Left engine hood contact switch | 10K |
