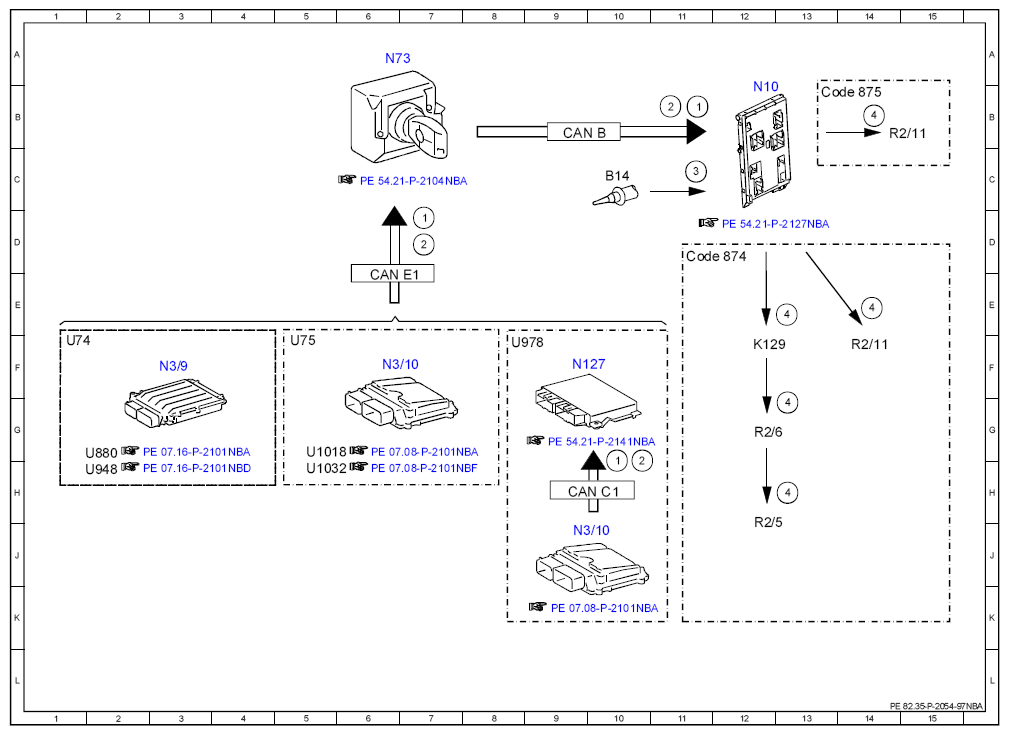

Electrical Function Schematic For Spray Nozzle Hose Heater - PE82.35-P-2054-97NBA
MODEL 166 as of model year 2016 with CODE 874 (MAGIC VISION CONTROL, heated)
MODEL 166 as of model year 2016 with CODE 875 (Heated windscreen washer system)
MODEL 292 with CODE 874 (MAGIC VISION CONTROL, heated)
MODEL 292 with CODE 875 (Heated windscreen washer system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 7D |
| 1 | Engine running, signal | 11B |
| 1 | Engine running, signal | 10G |
| 2 | Drivetrain operational, signal | 11B |
| 2 | Drivetrain operational, signal | 7D |
| 2 | Drivetrain operational, signal | 10G |
| 3 | Outside temperature sensor, signal | 11C |
| 4 | Spray nozzle hose heater, actuation | 14E |
| 4 | Spray nozzle hose heater, actuation | 13E |
| 4 | Spray nozzle hose heater, actuation | 13F |
| 4 | Spray nozzle hose heater, actuation | 13H |
| 4 | Spray nozzle hose heater, actuation | 14B |
| B14 | Outside temperature sensor | 10C |
| CAN B | Interior CAN | 9B |
| CAN C1 | Engine CAN | 9H |
| CAN E1 | Chassis CAN 1 | 6E |
| Code 874 | MAGIC VISION CONTROL | 11D |
| Code 875 | Heated windshield washer system | 13B |
| K129 | Spray nozzle hose heaters relay | 12F |
| N10 | SAM control unit | 12B |
| N127 | Drivetrain control unit | 9F |
| N3/10 | ME-SFI [ME] control unit | 6F |
| N3/10 | ME-SFI [ME] control unit | 9J |
| N3/9 | CDI control unit | 3F |
| N73 | Electronic ignition switch control unit | 6A |
| R2/11 | Spray nozzle hose heater | 14B |
| R2/11 | Spray nozzle hose heater | 14F |
| R2/5 | Upper spray nozzle hose heater | 12J |
| R2/6 | Windshield washer system junction box | 12G |
| U1018 | Valid for gasoline engine 276 | 5G |
| U1032 | Valid for engine 278 and 157 | 5H |
| U74 | Valid for diesel engines | 1F |
| U75 | Valid for gasoline engines | 5F |
| U880 | Valid for engine 642 | 1G |
| U948 | Valid for diesel engine 651 | 1H |
| U978 | Valid for hybrid drive | 8F |
