Head Unit Control Unit, Basic Function - GF82.85-P-9891A

MODEL ALL (CAR)

with CODE 547 (Connect 20 Entry (NTG6))

MODEL ALL (CAR)

with CODE 548 (Connect 20 MID (NTG6))

MODEL ALL (CAR)

with CODE 549 (Connect 20 HIGH (NTG6))

General

The head unit control unit is the central controller unit for the entertainment and communication systems integrated in the vehicle.

The head unit control unit controls the following functions:

• Multimedia system control
• Radio mode
• Media mode
• TV mode
• Smartphone integration
• Telephone
• Navigation

The head unit control unit is a subscriber in the following bus systems:

• Telematics CAN
• Powertrain CAN (depending on equipment)
• User interface CAN
• MOST

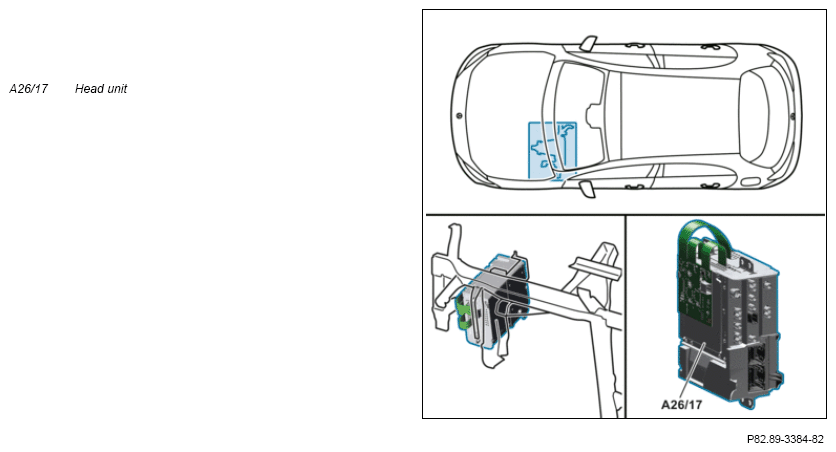

Location

The head unit is located in the instrument panel on the driver's side.

Function requirement

• Circuit 30t ON

Design

The head unit control unit contains the following components depending on the equipment:

• Radio tuner
• TV tuner
• Amplifier
• GPS receiver
• Bluetooth® receiver
• WLAN receiver

	Further basic function
	Multimedia system, basic function		GF82.85-P-9900A
