Windshield Wiper Motor, Basic Function - GF82.30-P-2001A

MODEL ALL (CAR)

Overview

This document contains the following information:

• Location
• Task

Location

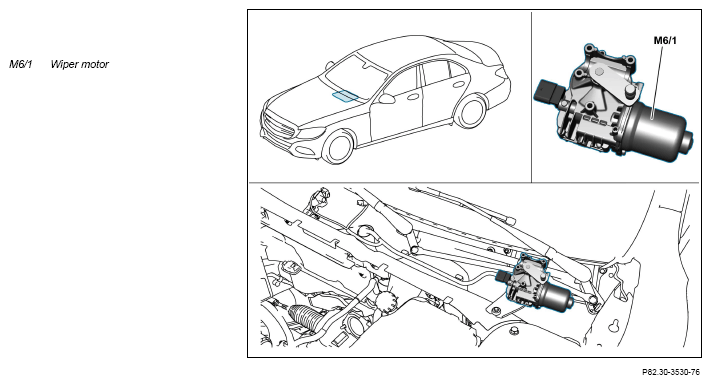

The wiper motor is located on the driver side in the engine compartment in front of the windshield.

Task

The wiper motor drives the windshield wiper arms. The wiper motor is actuated by the central controller unit (depending on the vehicle, SAM control unit (N10) or front SAM control unit (N10/6)).
