Prepare Longitudinal Member Front Section - AR62.20-P-1260-05GQ

MODEL 166, 292

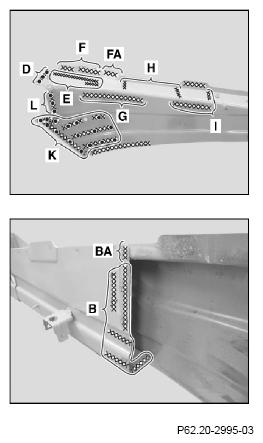

1. Grind mating surfaces down to bare metal in crosshatched areas (areas BA and FA).

   Sand down spot weld flanges to bare metal on both sides.

2. Grind mating surfaces down to bare metal in crosshatched areas (B, E, F, G, H and I) at connection side.
3. Drill Ø 7 mm holes for Ø in areas (D, K and L).
4. Debur holes on both sides.
5. Remove shavings and drill chips.
6. Coat insides of spot welding flanges with zinc dust paint.
